TaeguTec Cutting Tools - Metal Working Tools - Turning -

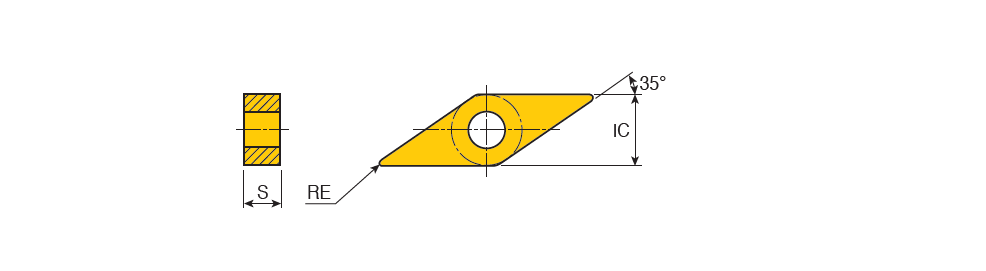

VNMX-MK (RHINO) : Negative 35° Rhombic RHINOTURN inserts for medium machining of stainless steels & heat resistant materials with sharp cutting edges

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VNMX 130404 MK	7.94	4.76	0.40	MK ~	35~	0.00~	0.70	3.00	0.17	0.35	4~	~	U ~	0.00~	V ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	TT5080~	2~	ISO$VN1304042NA$$04 ~	2.531 ~	VNMX ~	Y ~	13 ~	6141273		3		TT9080 TT9225 TT5080
VNMX 130408 MK	7.94	4.76	0.80	MK ~	35~	0.00~	1.00	3.00	0.20	0.40	4~	~	U ~	0.00~	V ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	TT3005~	2~	ISO$VN1304082NA$$08 ~	2.532 ~	VNMX ~	Y ~	13 ~	6210070		7		TT9235 TT9080 TT9225 TT3020 TT3010 TT5080 TT3005
