TaeguTec Cutting Tools - Metal Working Tools - Turning -

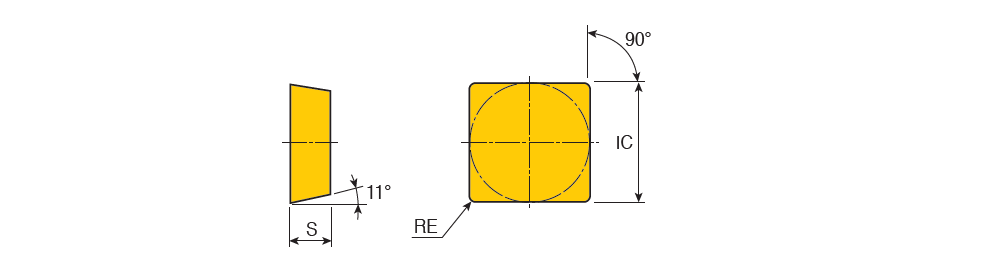

SPMR : Positive Square inserts for medium and medium-rough for steel, stainless steel & cast iron with positive rake angle

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SPMR 090304	9.52	3.18	0.40	9.52~	MR- ~	90~	11.00~	0.70	3.50	0.10	0.25	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT5100~	1~	ISO$SP0903041NB$$04 ~	321 ~	SPMR ~	Y ~	9 ~	5515290	1	TT5100
SPMR 090308	9.52	3.18	0.80	8.70~	MR- ~	90~	11.00~	1.00	3.50	0.13	0.30	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	1~	ISO$SP0903081NB$$08 ~	322 ~	SPMR ~	Y ~	9 ~	6212528	2	TT5100 TT8125B
SPMR 120304	12.70	3.18	0.40	12.70~	MR- ~	90~	11.00~	1.00	5.00	0.10	0.25	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT5100~	1~	ISO$SP1203041NB$$04 ~	421 ~	SPMR ~	Y ~	12 ~	5515106	1	TT5100
SPMR 120308	12.70	3.18	0.80	12.70~	MR- ~	90~	11.00~	1.00	5.00	0.13	0.30	4~	~	U ~	S ~	71DD68D829217 ~	CVD ~	8125B ~	1~	ISO$SP1203081NB$$08 ~	422 ~	SPMR ~	Y ~	12 ~	6241726	2	TT5100 TT8125B
