TaeguTec Cutting Tools - Metal Working Tools - Turning -

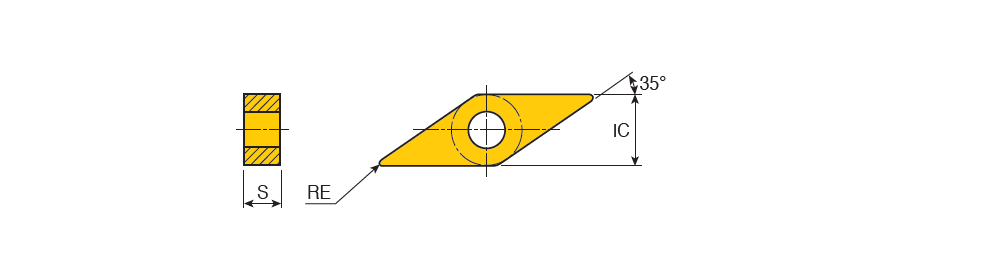

VNMX-MT (RHINO) : Negative 35° Rhombic RHINOTURN inserts for medium rough applications of steel, cast iron & stainless steel

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VNMX 130404 MT	7.94	4.76	0.40	MT ~	35~	0.00~	0.80	3.00	0.15	0.36	4~	~	U ~	0.00~	V ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	TT5100~	2~	ISO$VN1304042NA$$04 ~	2.531 ~	VNMX ~	Y ~	13 ~	6143100	2	TT9080 TT5100
VNMX 130408 MT	7.94	4.76	0.80	MT ~	35~	0.00~	1.00	3.00	0.17	0.36	4~	~	U ~	0.00~	V ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	8125B ~	2~	ISO$VN1304082NA$$08 ~	2.532 ~	VNMX ~	Y ~	13 ~	6241580	6	TT9080 TT5100 TT8125B TT5080 TT7015 TT7005
VNMX 130412 MT	7.94	4.76	1.20	MT ~	35~	0.00~	1.50	3.00	0.20	0.40	4~	~	U ~	0.00~	V ~	71DD68D301C30 ~	RHINO-TURN ~	CVD ~	TT5080~	2~	ISO$VN1304122NA$$12 ~	2.533 ~	VNMX ~	Y ~	13 ~	6143106	5	TT9080 TT5100 TT5080 TT7015 TT7005
