TaeguTec Cutting Tools - Metal Working Tools - Turning -

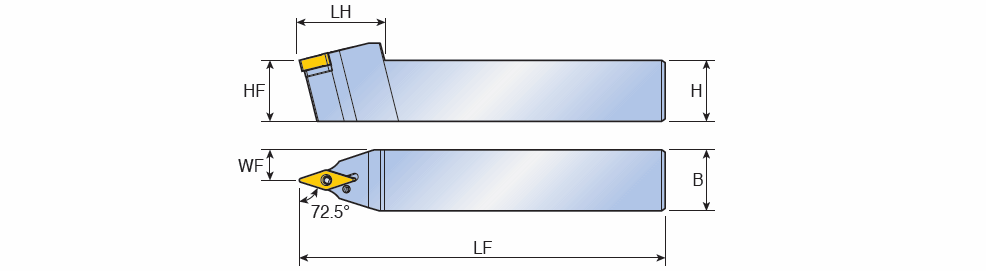

HVVNN (RHINO) : Hook lever RHINOTURN holder with 72.5° approach angle for VN/YN.. 1304 inserts

Designation	HF	H	B	LF	LH	WF	IC	t	Kr	KAPR	CL	Tool typ	HAND	S	ClssID	MIID	IIC	IIC_2	GICAT	GIREM	giic	GICODE
HVVNN 2020 K1304	20.0	20.0	20.0	125.00	35.0	10.00	7.94~	4.76~	60~	73.0~	HOOK LEVER ~	SQUARE ~	~	4.76~	71E01A0E85121 ~	VNMX 130408 PC	IS$$680996109814265 ~	IS$$930251849938740 ~	6142672		0
HVVNN 2525 M1304	25.0	25.0	25.0	150.00	35.0	12.50	7.94~	4.76~	60~	73.0~	HOOK LEVER ~	SQUARE ~	~	4.76~	71E01A0E85121 ~	VNMX 130408 PC	IS$$680996109814265 ~	IS$$930251849938740 ~	6142533		0
