Turning
Main Application

A-SDQNR/L : Screw type boring bars for 55° negative Rhombic inserts with coolant and 107.5° approach angle

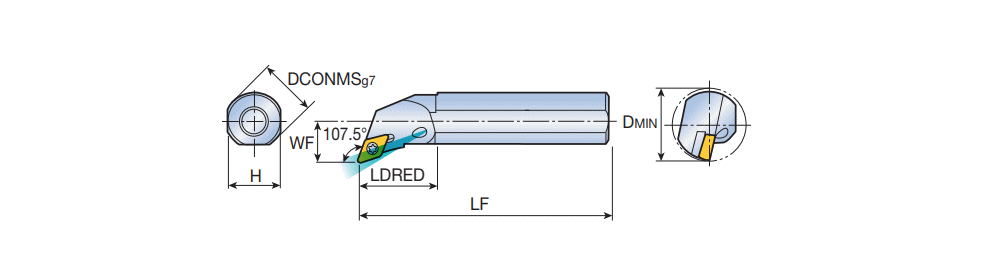

Right-hand shown

Right-hand shown

  DesignationDCONMS H LF LDRED WF DMIN IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC IIC_2 GICATGIREMgiicGICODE
  A16S SDQNL 11 16.0015.0250.0030.013.0023.009.52~4.76~15~108.0~SCREW ~BORING BAR ~L ~71E01A0E9CBA9 ~DNMA 110408 IS$$567394293143920 ~IS$$612474122530520 ~6308501 0
  A16S SDQNR 11 16.0015.0250.0030.013.0023.009.52~4.76~15~108.0~SCREW ~BORING BAR ~R ~71E01A0E9CBA9 ~DNMA 110408 IS$$567394293143920 ~IS$$612474122530520 ~3602148 0
  A20S SDQNL 11 20.0018.0250.0031.015.0027.009.52~4.76~15~108.0~SCREW ~BORING BAR ~L ~71E01A0E9CBA9 ~DNMA 110408 IS$$567394293143920 ~IS$$612474122530520 ~3602146 0
  A20S SDQNR 11 20.0018.0250.0031.015.0027.009.52~4.76~15~108.0~SCREW ~BORING BAR ~R ~71E01A0E9CBA9 ~DNMA 110408 IS$$567394293143920 ~IS$$612474122530520 ~6308509 0
  A25T SDQNL 11 25.0023.0300.0035.019.0033.009.52~4.76~15~108.0~SCREW ~BORING BAR ~L ~71E01A0E9CBA9 ~DNMA 110408 IS$$567394293143920 ~IS$$612474122530520 ~3602154 0
  A25T SDQNR 11 25.0023.0300.0035.019.0033.009.52~4.76~15~108.0~SCREW ~BORING BAR ~R ~71E01A0E9CBA9 ~DNMA 110408 IS$$567394293143920 ~IS$$612474122530520 ~3602149 0
  A32T SDQNL 11 32.0030.0300.0044.026.0044.009.52~4.76~15~108.0~SCREW ~BORING BAR ~L ~71E01A0E9CBA9 ~DNMA 110408 IS$$567394293143920 ~IS$$612474122530520 ~3604882 0
  A32T SDQNR 11 32.0030.0300.0044.026.0044.009.52~4.76~15~108.0~SCREW ~BORING BAR ~R ~71E01A0E9CBA9 ~DNMA 110408 IS$$567394293143920 ~IS$$612474122530520 ~3604879 0
