TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

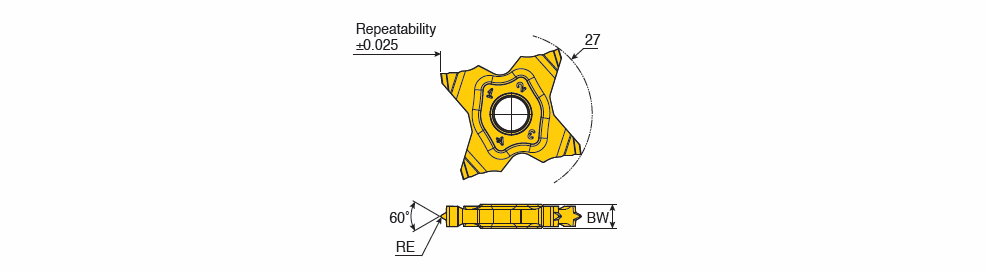

TQS 27-ISO : Inserts with 4 cutting edge for ISO metric full profile of external threading

Designation	RE	BW	TP	S1	SC	CB1	ClssID	HAND	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TQS 27-0.5-ISO	0.08	4.00	0.50	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126254	1	TT9080
TQS 27-0.75-ISO	0.11	4.00	0.75	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126255	1	TT9080
TQS 27-0.8-ISO	0.12	4.00	0.80	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126256	1	TT9080
TQS 27-1.0-ISO	0.14	4.00	1.00	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126257	1	TT9080
TQS 27-1.25-ISO	0.18	4.00	1.25	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126258	1	TT9080
TQS 27-1.5-ISO	0.22	4.00	1.50	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126259	1	TT9080
TQS 27-1.75-ISO	0.25	4.00	1.75	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126260	1	TT9080
TQS 27-2.0-ISO	0.28	4.00	2.00	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126261	1	TT9080
