TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

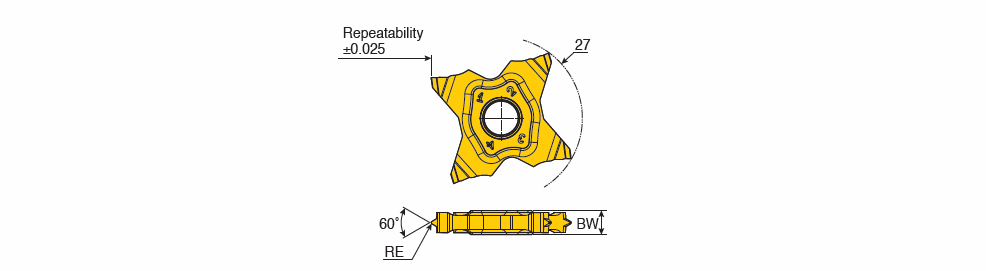

TQS 27-UN : Inserts with 4 cutting edge for American UN(UNC,UNF,UNEF) full profile of external threading

Designation	RE	BW	TPI	S1	SC	CB1	ClssID	HAND	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TQS 27-24-UN	0.13	4.00	24.0	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126262	1	TT9080
TQS 27-18-UN	0.16	4.00	18.0	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126264	1	TT9080
TQS 27-20-UN	0.16	4.00	20.0	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126263	1	TT9080
TQS 27-16-UN	0.21	4.00	16.0	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126265	1	TT9080
TQS 27-14-UN	0.23	4.00	14.0	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126266	1	TT9080
TQS 27-12-UN	0.27	4.00	12.0	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126267	1	TT9080

TPI: Thread / Inch
