TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

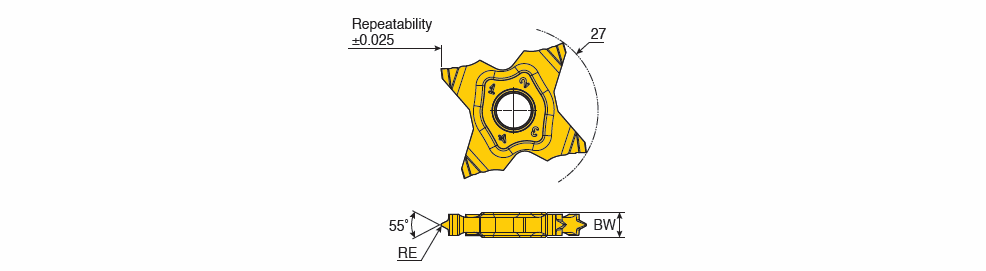

TQS 27-W : Inserts with 4 cutting edge for Whitworth (BSW,BSF,BSP) full profile of external threading

Designation	RE	BW	TPI	S1	SC	CB1	ClssID	HAND	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TQS 27-28-W	0.09	4.00	28.0	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126268	1	TT9080
TQS 27-19-W	0.15	4.00	19.0	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126269	1	TT9080
TQS 27-18-W	0.16	4.00	18.0	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126270	1	TT9080
TQS 27-16-W	0.19	4.00	16.0	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126271	1	TT9080
TQS 27-14-W	0.21	4.00	14.0	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126272	1	TT9080
TQS 27-12-W	0.25	4.00	12.0	27.00~	P ~	~	71DDA089C8D1E ~	N ~	4~	PVD ~	S ~	TT9080~	IS$$300068497396360 ~	6126273	1	TT9080

TPI: Thread / Inch
