TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

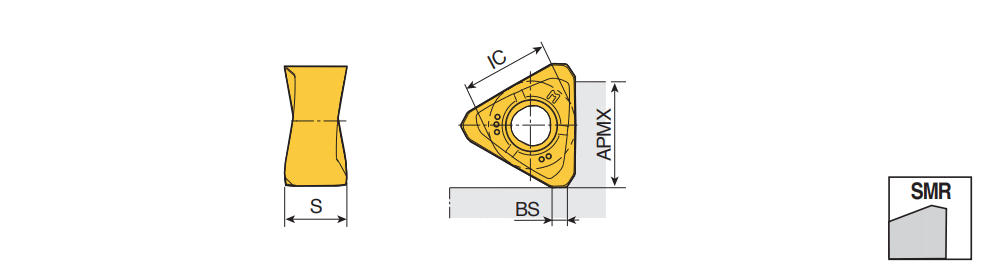

TNMX 18-SMR2 : Triangular double-sided chip splitter inserts with 6 cutting edges of TNMX 18 & two chip splitters for low cutting force & general machining & higher productivity

Designation	IC	RE	BS	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMX 1806 PNTR-SMR2	11.65	8.00	1.40	13.00	18.00~	2.70	11.00	0.200	0.100	M8 ~	6~	M2R-TN18 ~	T ~	71DD68D8446CE ~	U60-CS ~	SMR2 ~	TT6080~	IS$$1199662420775822 ~	TNMX 18 ~	0~	6158336		3		TT8080 TT9080 TT6080

-SMR2: Two chip spliiters
