TNMX 18-SMR3 : Triangular double-sided chip splitter inserts with 6 cutting edges of TNMX 18 & three chip splitters for low cutting force & general machining & higher productivity

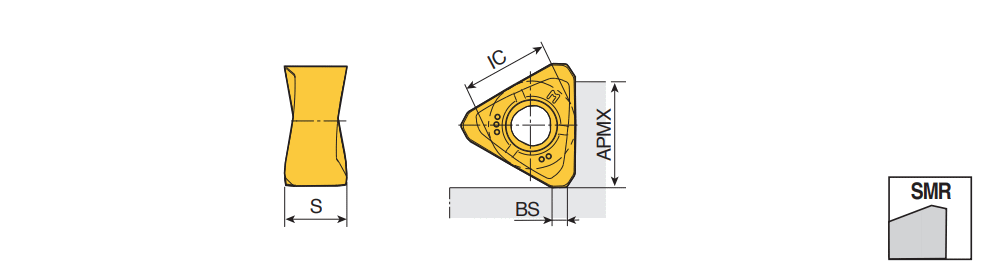

Designation	IC	S	BS	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMX 1806 PNTR-SMR3	11.65	8.00	1.40	13.00	18.00~	2.70	11.00	0.200	0.100	M8 ~	6~	M2R-TN18 ~	T ~	71DD68D8446CE ~	U60-CS ~	SMR3 ~	TT8080~	IS$$1199662420775822 ~	TNMX 18 ~	0~	6158337		2		TT8080 TT9080

-SMR3: Three chip splitters
