TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

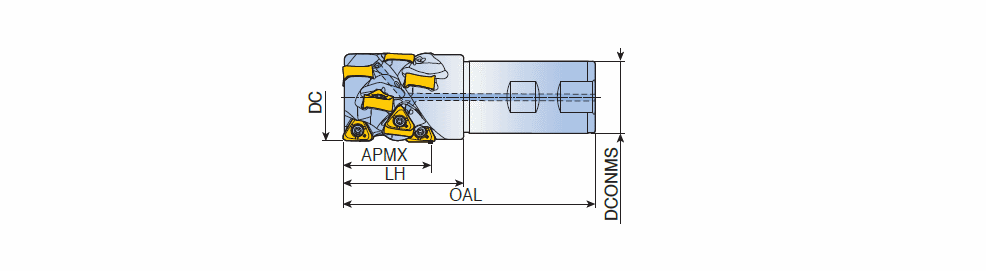

TEF-TN18 : Extended flute end mills with helical 6 cutting edges of double-sided TNMX 18 inserts

Designation	Tool sty	DC	NOF	CICT	DCONMS	OAL	LH	APMX	S1	Shank	RMPX	KAPR	HAND	Arbor		PD	Insert	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT	GIREM	giic	GICODE
TEF D50-48-W40-TN18	EXTENDED FLUTE ~	50.00	3	12	40.00	140.00	67.00	48.00	18.00~	W ~	0.00~	90.0~	~	~	1.45	C ~	M2R-TN18 ~	71E01A05D27A8 ~	TNMX 1806 PNTR-M	O ~	ZYL ~	10 ~	IS$$1199662420775822 ~	70.00~	3~	3~	6146702		0
TEF D50-48-W40-TN18-2F	EXTENDED FLUTE ~	50.00	2	8	40.00	140.00	67.00	48.00	18.00~	W ~	0.00~	90.0~	~	~	1.50	C ~	M2R-TN18 ~	71E01A05D27A8 ~	TNMX 1806 PNTR-M	O ~	ZYL ~	10 ~	IS$$1199662420775822 ~	70.00~	2~	2~	6146701		0
