TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TES-TN18 : Extended flute shell mills with helical 6 cutting edges TNMX 18 inserts

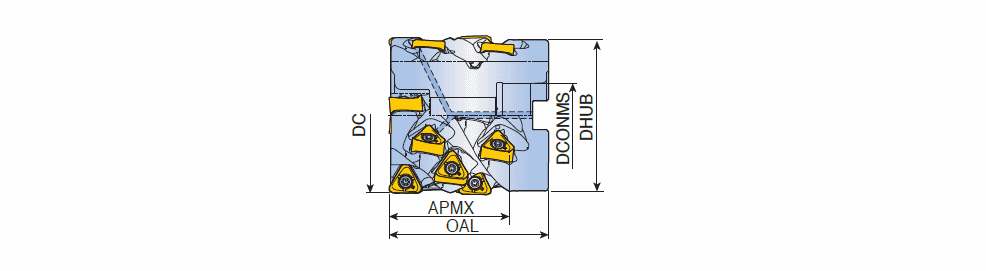

Designation	Tool sty	DC	NOF	CICT	DCONMS	DHUB	OAL	APMX	Arbor		S1	RMPX	KAPR	HAND	PD	Insert	Mtg. Ref	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
TES D63-48-27R-TN18	EXTENDED FLUTE ~	63.00	3	12	27.00	60.00	70.00	48.00	A	1.10	18.00~	0.00~	90.0~	~	C ~	M2R-TN18 ~	SH M12X1.75X50 ~	71E01A05B627B ~	TNMX 1806 PNTR-M	O ~	FDA ~	02 ~	IS$$1199662420775822 ~	70.00~	3~	3~	6139327
TES D63-48-27R-TN18-2F	EXTENDED FLUTE ~	63.00	2	8	27.00	60.00	70.00	48.00	A	1.20	18.00~	0.00~	90.0~	~	C ~	M2R-TN18 ~	SH M12X1.75X50 ~	71E01A05B627B ~	TNMX 1806 PNTR-M	O ~	FDA ~	02 ~	IS$$1199662420775822 ~	70.00~	2~	2~	6146703
TES D80-60-32R-TN18	EXTENDED FLUTE ~	80.00	4	20	32.00	76.00	80.00	60.00	A	2.20	18.00~	0.00~	90.0~	~	C ~	M2R-TN18 ~	SH M16X2.0X60 ~	71E01A05B627B ~	TNMX 1806 PNTR-M	O ~	FDA ~	02 ~	IS$$1199662420775822 ~	80.00~	4~	4~	6146704
TES D100-71-40R-TN18	EXTENDED FLUTE ~	100.00	5	30	40.00	96.00	100.00	71.00	A	4.40	18.00~	0.00~	90.0~	~	C ~	M2R-TN18 ~	SH M20X2.5X70 ~	71E01A05B627B ~	TNMX 1806 PNTR-M	O ~	FDA ~	02 ~	IS$$1199662420775822 ~	100.00~	5~	5~	6146706
TES D100-71-40R-TN18-6F	EXTENDED FLUTE ~	100.00	6	36	40.00	96.00	100.00	71.00	A	4.40	18.00~	0.00~	90.0~	~	C ~	M2R-TN18 ~	SH M20X2.5X70 ~	71E01A05B627B ~	TNMX 1806 PNTR-M	O ~	FDA ~	02 ~	IS$$1199662420775822 ~	100.00~	6~	6~	6146707
