Parting & Grooving
Main Application

MINS...-L100C : Sleeves for direct connection of coolant & mini carbide bars

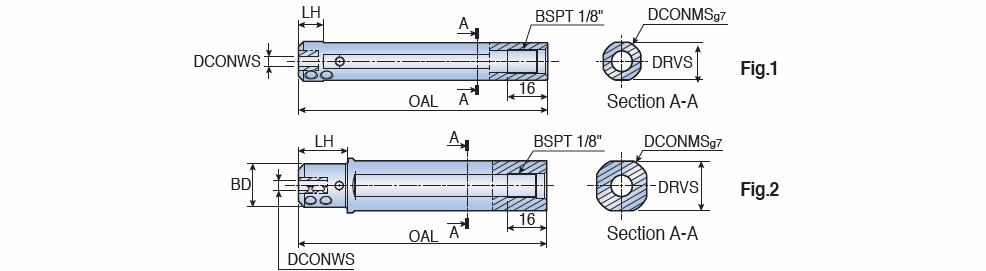

  DesignationDCONMS DCONWS BD OAL LH DRVS Fig. S1 S. Std. L2  ClssID GICATGIREMgiicGICODE
  MINS 16-4-L100C 16.004.00-100.0010.0015.010.00~CYL ~0.00~X ~71EAD385E51A0 ~6729966 0
  MINS 16-7-L100C 16.007.00-100.0010.0015.010.00~CYL ~0.00~X ~71EAD385E51A0 ~6729967 0
  MINS 20-4-L100C 20.004.0017.5100.0020.0018.020.00~CYL ~0.00~X ~71EAD385E51A0 ~2810662 0
  MINS 20-7-L100C 20.007.0017.5100.0020.0018.020.00~CYL ~0.00~X ~71EAD385E51A0 ~6729969 0
  MINS 22-4-L100C 22.004.0017.5100.0020.0020.020.00~CYL ~0.00~X ~71EAD385E51A0 ~6729970 0
  MINS 22-7-L100C 22.007.0017.5100.0020.0020.020.00~CYL ~0.00~X ~71EAD385E51A0 ~6729971 0
  MINS 25-4-L100C 25.004.0018.0100.0023.0023.020.00~CYL ~0.00~X ~71EAD385E51A0 ~2810661 0
  MINS 25-7-L100C 25.007.0018.0100.0023.0023.020.00~CYL ~0.00~X ~71EAD385E51A0 ~6729972 0
All sleeves applicable for Citizen Swiss type machine
