TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TE90XEV-M-16 : 90° Modular end mills with T-FLEXTEC adaptation & high positive 2 helical cutting edges of V bottomed XEVT inserts for high speed aluminum machining

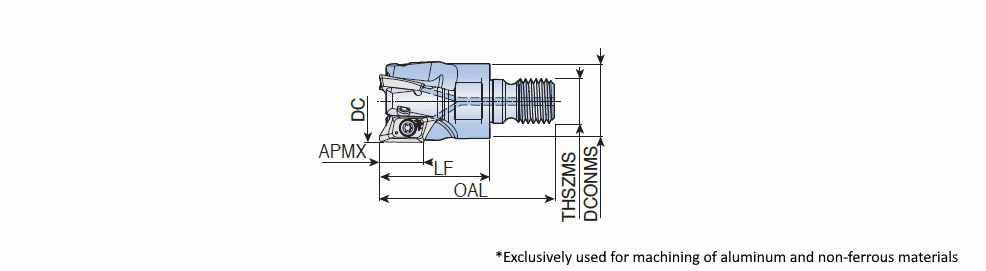

Designation	Tool sty	DC	CICT	DCONMS	APMX	LF	OAL	THSZMS	Max.RPM	S1	RMPX	KAPR	HAND	Arbor	PD		Insert	ClssID	MIID		CCTMS	CCFMS	IIC	LTA	TQ_3	ZEFF	ZEFP	GICAT
TE90XEV 225-M12-16	MODULAR ~	25.00	2	21.00	16.00	43.00	65.00	M12	52000	16.00~	23.50~	90.0~	~	~	C ~	0.11	CA-XEV16 ~	71E01A05D27A8 ~	XEVT 160508R-AL	O ~	SAI ~	02 ~	IS$$507415201983330 ~	43.00~	0~	2~	2~	6128441
TE90XEV 232-M16-16	MODULAR ~	32.00	2	29.00	16.00	43.00	68.00	M16	46000	16.00~	13.50~	90.0~	~	~	C ~	0.20	CA-XEV16 ~	71E01A05D27A8 ~	XEVT 160508R-AL	O ~	SAI ~	02 ~	IS$$507415201983330 ~	43.00~	0~	2~	2~	6128442
TE90XEV 332-M16-16	MODULAR ~	32.00	3	29.00	16.00	43.00	68.00	M16	46000	16.00~	13.50~	90.0~	~	~	RC ~	0.20	CA-XEV16 ~	71E01A05D27A8 ~	XEVT 160508R-AL	O ~	SAI ~	02 ~	IS$$507415201983330 ~	43.00~	0~	3~	3~	6128443
TE90XEV 340-M16-16	MODULAR ~	40.00	3	29.00	16.00	43.00	68.00	M16	41200	16.00~	9.00~	90.0~	~	~	RC ~	0.25	CA-XEV16 ~	71E01A05D27A8 ~	XEVT 160508R-AL	O ~	SAI ~	02 ~	IS$$507415201983330 ~	43.00~	0~	3~	3~	6128444

Cutter body for inserts with corner radii more than 3.2mm (3.2mm
