TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TFM90XEV-R-16/22 : 90° Face mills with very high positive rake angle & two helical cutting edges inserts of XEVT 16/22 for high speed aluminum machining

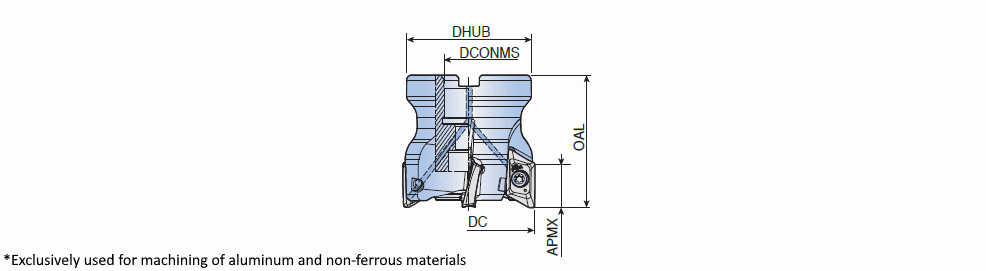

Designation	Tool sty	S1	DC	CICT	DCONMS	DHUB	OAL	APMX		Max.RPM		Arbor	RMPX	KAPR	HAND	PD	Insert	Mtg. Ref	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT
TFM90XEV 340-16R-16	FACE MILL ~	16.00~	40.00	3	16.00	38.00	50.00	16.00	O	41200	0.22	A	9.00~	90.0~	~	RC ~	CA-XEV16 ~	SH M8X1.25X35-C ~	71E01A05B627B ~	XEVT 160508R-AL	FDA ~	02 ~	IS$$507415201983330 ~	50.00~	3~	3~	6128420
TFM90XEV 350-22R-16	FACE MILL ~	16.00~	50.00	3	22.00	45.00	50.00	16.00	O	36800	0.33	A	7.50~	90.0~	~	C ~	CA-XEV16 ~	~	71E01A05B627B ~	XEVT 160508R-AL	FDA ~	02 ~	IS$$507415201983330 ~	50.00~	3~	3~	6241912
TFM90XEV 363-22R-16	FACE MILL ~	16.00~	63.00	3	22.00	47.00	50.00	16.00	O	41200	0.47	A	0.00~	90.0~	~	C ~	CA-XEV16 ~	SH M8x35-C ~	71E01A05B627B ~	XEVT 160508R-AL	FDA ~	02 ~	IS$$507415201983330 ~	50.00~	3~	3~	6248761
TFM90XEV 450-22R-16	FACE MILL ~	16.00~	50.00	4	22.00	45.00	50.00	16.00	O	6800	0.32	A	6.50~	90.0~	~	RC ~	CA-XEV16 ~	SH M10X1.5X30-C ~	71E01A05B627B ~	XEVT 160508R-AL	FDA ~	02 ~	IS$$507415201983330 ~	50.00~	4~	4~	6116407
TFM90XEV 480-27R-16	FACE MILL ~	16.00~	80.00	4	27.00	58.00	50.00	16.00	O	29000	0.81	A	4.50~	90.0~	~	C ~	CA-XEV16 ~	~	71E01A05B627B ~	XEVT 160508R-AL	FDA ~	02 ~	IS$$507415201983330 ~	50.00~	4~	4~	6242155
TFM90XEV 563-22R-16	FACE MILL ~	16.00~	63.00	5	22.00	47.00	50.00	16.00	O	32700	0.51	A	5.00~	90.0~	~	RC ~	CA-XEV16 ~	SH M10X1.5X30-C ~	71E01A05B627B ~	XEVT 160508R-AL	FDA ~	02 ~	IS$$507415201983330 ~	50.00~	5~	5~	6116358
TFM90XEV 580-27R-16	FACE MILL ~	16.00~	80.00	5	27.00	58.00	50.00	16.00	O	29000	0.84	A	4.00~	90.0~	~	RC ~	CA-XEV16 ~	LH M12X1.75X30-C ~	71E01A05B627B ~	XEVT 160508R-AL	FDA ~	02 ~	IS$$507415201983330 ~	50.00~	5~	5~	6128421
TFM90XEV 6100-32R-16	FACE MILL ~	16.00~	100.00	6	32.00	66.00	63.00	16.00	O	26000	1.58	A	3.00~	90.0~	~	RC ~	CA-XEV16 ~	SH M16X2.0X35-C ~	71E01A05B627B ~	XEVT 160508R-AL	FDA ~	02 ~	IS$$507415201983330 ~	63.00~	6~	6~	6128422
TFM90XEV 680-27R-16	FACE MILL ~	16.00~	80.00	6	27.00	58.00	50.00	16.00	O	29000	0.78	A	4.00~	90.0~	~	RC ~	CA-XEV16 ~	LH M12X1.75X30-C ~	71E01A05B627B ~	XEVT 160508R-AL	FDA ~	02 ~	IS$$507415201983330 ~	50.00~	6~	6~	6153544
TFM90XEV 7125-40R-16	FACE MILL ~	16.00~	125.00	7	40.00	85.00	63.00	16.00	O	23200	2.58	A	2.00~	90.0~	~	RC ~	CA-XEV16 ~	SH M20X2.5X40-C ~	71E01A05B627B ~	XEVT 160508R-AL	FDA ~	02 ~	IS$$507415201983330 ~	63.00~	7~	7~	6128423
TFM90XEV 8160-40R-16	FACE MILL ~	16.00~	160.00	8	40.00	110.00	63.00	16.00	X	20000	3.45	C	1.10~	90.0~	~	C ~	CA-XEV16 ~	- ~	71E01A05B627B ~	XEVT 160508R-AL	FDA ~	02 ~	IS$$507415201983330 ~	63.00~	8~	8~	6163281
TFM90XEV 350-22R-22	FACE MILL ~	22.00~	50.00	3	22.00	45.00	55.00	21.00	O	31400	0.39	A	8.50~	90.0~	~	C ~	CA-XEV22 ~	SH M10X1.5X30-C ~	71E01A05B627B ~	XEVT 220608R-AL	FDA ~	02 ~	IS$$114733969136584 ~	55.00~	3~	3~	3112952
TFM90XEV 463-22R-22	FACE MILL ~	22.00~	63.00	4	22.00	47.00	55.00	21.00	O	28000	0.53	A	5.50~	90.0~	~	RC ~	CA-XEV22 ~	SH M10X1.5X30-C ~	71E01A05B627B ~	XEVT 220608R-AL	FDA ~	02 ~	IS$$114733969136584 ~	55.00~	4~	4~	3112953
TFM90XEV 580-27R-22	FACE MILL ~	22.00~	80.00	5	27.00	58.00	55.00	21.00	O	24800	0.91	A	4.00~	90.0~	~	RC ~	CA-XEV22 ~	LH M12X1.75X30-C ~	71E01A05B627B ~	XEVT 220608R-AL	FDA ~	02 ~	IS$$114733969136584 ~	55.00~	5~	5~	6130752
TFM90XEV 6100-32R-22	FACE MILL ~	22.00~	100.00	6	32.00	85.00	63.00	21.00	O	22200	2.04	A	3.00~	90.0~	~	RC ~	CA-XEV22 ~	SH M16X2.0X35-C ~	71E01A05B627B ~	XEVT 220608R-AL	FDA ~	02 ~	IS$$114733969136584 ~	63.00~	6~	6~	6130753
TFM90XEV 7125-40R-22	FACE MILL ~	22.00~	125.00	7	40.00	85.00	63.00	21.00	O	19900	2.61	A	2.00~	90.0~	~	RC ~	CA-XEV22 ~	SH M20X2.5X40-C ~	71E01A05B627B ~	XEVT 220608R-AL	FDA ~	02 ~	IS$$114733969136584 ~	63.00~	7~	7~	6130754

Cutter body for inserts with corner radii more than 3.2mm (3.2mm
