TaeguTec Cutting Tools - Metal Working Tools - Turning -

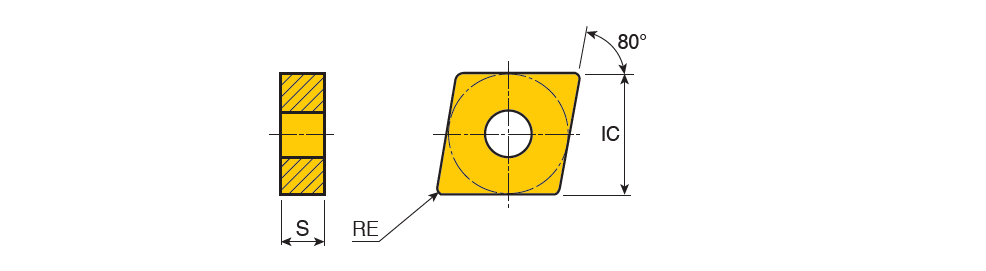

CNMG-MGS : Negative 80° Rhombic inserts for medium to semi-finishing applications of heat resistant super alloys

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 120408 MGS	12.70	4.76	0.80	12.90~	MGS ~	80~	0.00~	1.00	4.00	0.15	0.40	4~	~	U ~	C ~	~	CVD ~	K10 ~	2~	ISO$CN1204082NB$$08 ~	432 MG ~	CNMG ~	Y ~	12 ~	6318897		4		TT3020 TT3010 TT3005 K10
CNMG 120412 MGS	12.70	4.76	1.20	12.90~	MGS ~	80~	0.00~	1.50	4.00	0.17	0.50	4~	~	U ~	C ~	~	CVD ~	K10 ~	2~	ISO$CN1204122NB$$12 ~	433 MG ~	CNMG ~	Y ~	12 ~	6318919		4		TT3020 TT3010 TT3005 K10
