TaeguTec Cutting Tools - Metal Working Tools - Turning -

SNMG-MGS : Negative Square inserts for medium to semi-finishing applications of heat resistant super alloys

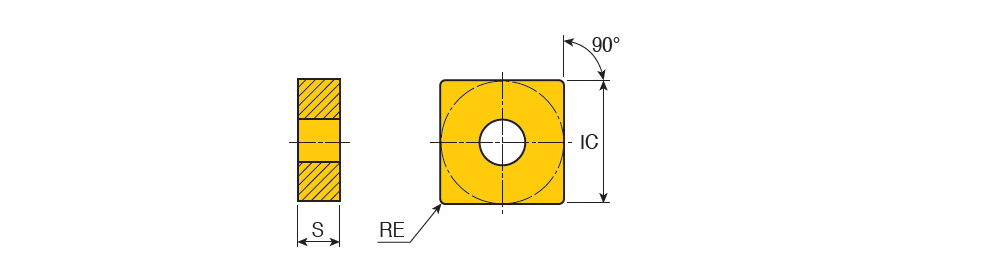

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMG 120408 MGS	12.70	4.76	0.80	12.70~	MGS ~	90~	0.00~	1.00	4.00	0.15	0.40	8~	~	~	S ~	~	CVD ~	K10 ~	2~	ISO$SN1204082NB$$08 ~	432 MG ~	SNMG ~	Y ~	12 ~	6317362	4	TT3020 TT3010 TT3005 K10
SNMG 120412 MGS	12.70	4.76	1.20	12.70~	MGS ~	90~	0.00~	1.30	4.00	0.17	0.40	8~	~	~	S ~	~	CVD ~	K10 ~	2~	ISO$SN1204122NB$$12 ~	433 MG ~	SNMG ~	Y ~	12 ~	6318924	4	TT3020 TT3010 TT3005 K10
SNMG 190616 MGS	19.05	6.35	1.60	19.05~	MGS ~	90~	0.00~	1.50	8.00	0.17	0.60	8~	~	~	S ~	~	CVD ~	K10 ~	2~	ISO$SN1906162NB$$16 ~	644 MG ~	SNMG ~	Y ~	19 ~	6318925	4	TT3020 TT3010 TT3005 K10
