TaeguTec Cutting Tools - Metal Working Tools - Turning -

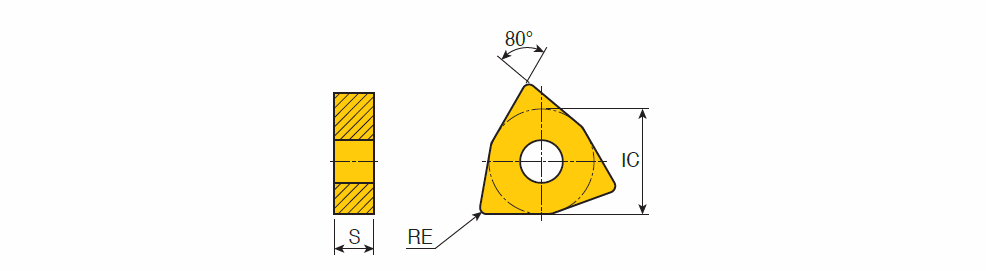

WNMG-MGS : Negative 80° Trigon inserts for medium to semi-finishing applications of heat resistant super alloys

Designation	l	IC	S	RE	CB	alpha	a	ap (min)	ap (max)	ft (min)	ft (max)	CE	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 080408 MGS	8.70~	12.70	4.76	0.80	MGS ~	80~	0.00~	1.00	4.00	0.15	0.40	6~	~	U ~	W ~	~	CVD ~	K10 ~	2~	ISO$WN0804082NB$$08 ~	432 MG ~	WNMG ~	Y ~	8 ~	6318926		4		TT3020 TT3010 TT3005 K10
WNMG 080412 MGS	8.70~	12.70	4.76	1.20	MGS ~	80~	0.00~	1.30	4.00	0.17	0.40	6~	~	U ~	W ~	~	CVD ~	K10 ~	2~	ISO$WN0804122NB$$12 ~	433 MG ~	WNMG ~	Y ~	8 ~	6318927		4		TT3020 TT3010 TT3005 K10
