Turning
Main Application

SRDCN (Holder) : Screw type holder with 45° approach angle for positive Round inserts of 7° clearance angle

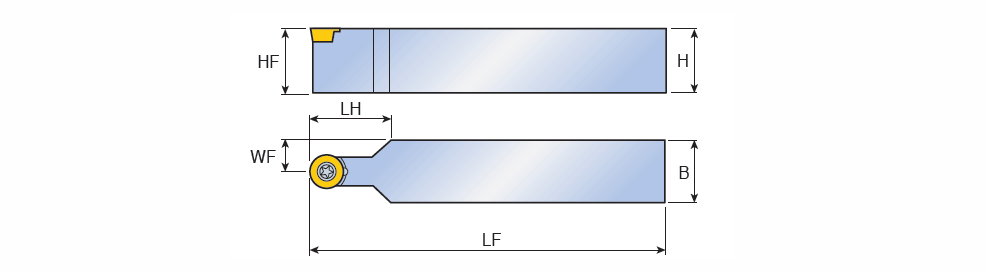

  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC GICATGIREMgiicGICODE
  SRDCN 1616 H08 16.016.016.0100.0024.58.008.00~3.18~0~90.0~SCREW ~SQUARE ~ ~71E01A0E85121 ~RCGT 0803MO FL IS$$38889003996606 ~3600213 0
  SRDCN 1616 H10 16.016.016.0100.0017.28.0010.00~3.97~0~90.0~SCREW ~SQUARE ~ ~71E01A0E85121 ~RCMT 10T300 MT IS$$139525767938756 ~3600214 0
  SRDCN 2020 K08 20.020.020.0125.0031.510.008.00~3.18~0~90.0~SCREW ~SQUARE ~ ~71E01A0E85121 ~RCGT 0803MO FL IS$$38889003996606 ~3600215 0
  SRDCN 2020 K10 20.020.020.0125.0022.510.0010.00~3.97~0~90.0~SCREW ~SQUARE ~ ~71E01A0E85121 ~RCMT 10T300 MT IS$$139525767938756 ~3600216 0
  SRDCN 2525 M08 25.025.025.0150.0039.012.508.00~3.18~0~90.0~SCREW ~SQUARE ~ ~71E01A0E85121 ~RCGT 0803MO FL IS$$38889003996606 ~3601434 0
  SRDCN 2525 M10 25.025.025.0150.0027.512.5010.00~3.97~0~90.0~SCREW ~SQUARE ~ ~71E01A0E85121 ~RCMT 10T300 MT IS$$139525767938756 ~3600544 0
  SRDCN 2525 M12 25.025.025.0150.0027.512.5012.00~4.76~0~90.0~SCREW ~SQUARE ~ ~71E01A0E85121 ~RCMT 120400 MT IS$$73953329217690 ~3600545 0
