TaeguTec Cutting Tools - Metal Working Tools - Turning -

A-SCLPR/L : Screw type boring bars for positive 80° Rhombic inserts of 11° clearance angle with coolant and 95° approach angle

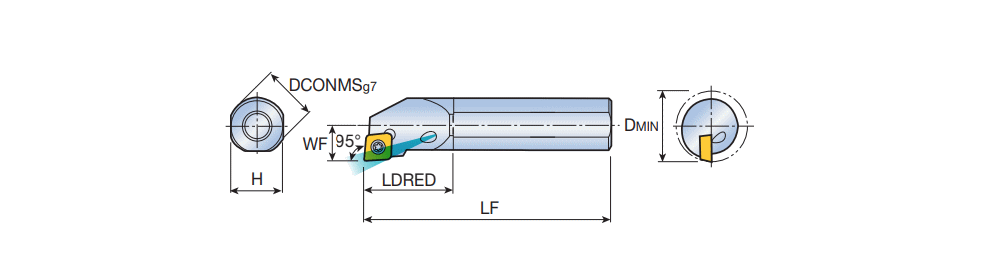

Right-hand shown

Designation	DCONMS	H	LF	LDRED	WF	DMIN	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID	IIC	GICAT
A08H SCLPL 06	8.00	7.0	100.00	15.0	6.00	11.00	6.35~	2.38~	95~	95.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CPMT 060204 PC	IS$$104016671268016 ~	3605837
A08H SCLPR 06	8.00	7.0	100.00	15.0	6.00	11.00	6.35~	2.38~	95~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CPMT 060204 PC	IS$$104016671268016 ~	3605836
A10K SCLPL 06	10.00	9.0	125.00	15.0	7.00	13.00	6.35~	2.38~	95~	95.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CPMT 060204 PC	IS$$104016671268016 ~	3605839
A10K SCLPR 06	10.00	9.0	125.00	15.0	7.00	13.00	6.35~	2.38~	95~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CPMT 060204 PC	IS$$104016671268016 ~	3605838
A12M SCLPL 09T3	12.00	11.0	150.00	19.0	9.00	16.00	9.52~	3.97~	95~	95.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CPMT 09T308 FS	IS$$116958417776000 ~	3605847
A12M SCLPR 09T3	12.00	11.0	150.00	19.0	9.00	16.00	9.52~	3.97~	95~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CPMT 09T308 FS	IS$$116958417776000 ~	3605846
A12M SCLPR 0903	12.00	11.0	150.00	19.0	9.00	16.00	9.52~	3.18~	95~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CPMT 090308 FG	IS$$178628560253350 ~	3605840
A16Q SCLPL 09T3	16.00	15.0	180.00	24.5	11.00	20.00	9.52~	3.97~	95~	95.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CPMT 09T308 FS	IS$$116958417776000 ~	3604311
A16Q SCLPL 0903	16.00	15.0	180.00	20.0	11.00	20.00	9.52~	3.18~	95~	95.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CPMT 090308 FG	IS$$178628560253350 ~	3605843
A16Q SCLPR 09T3	16.00	15.0	180.00	24.0	11.00	20.00	9.52~	3.97~	95~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CPMT 09T308 FS	IS$$116958417776000 ~	3604310
A16Q SCLPR 0903	16.00	15.0	180.00	20.0	11.00	20.00	9.52~	3.18~	95~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CPMT 090308 FG	IS$$178628560253350 ~	3605842
A20R SCLPL 0903	20.00	18.0	200.00	22.0	13.00	25.00	9.52~	3.18~	95~	95.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CPMT 090308 FG	IS$$178628560253350 ~	3605845
A20R SCLPR 09T3	20.00	18.0	200.00	22.0	13.00	25.00	9.52~	3.97~	95~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CPMT 09T308 FS	IS$$116958417776000 ~	3605848
A20R SCLPR 0903	20.00	18.0	200.00	22.0	13.00	25.00	9.52~	3.18~	95~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CPMT 090308 FG	IS$$178628560253350 ~	3605844
