TaeguTec Cutting Tools - Metal Working Tools - Turning -

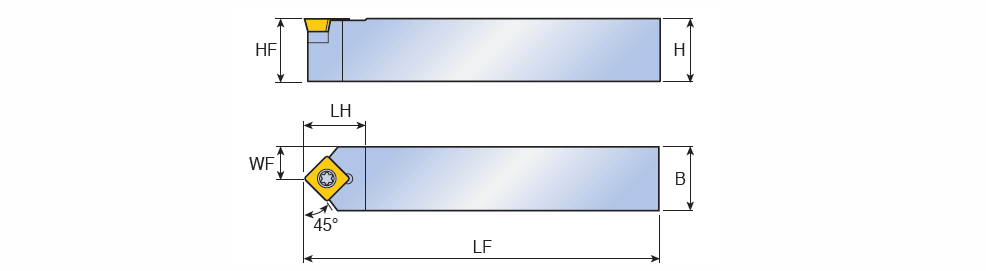

SSDCN (Holder) : Screw type holders with 45° approach angle for positive Square inserts of 7° clearance angle

Designation	HF	H	B	LF	LH	WF	MIID	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	IIC	IIC_2	GICAT	GIREM	giic	GICODE
SSDCN 1212 F09	12.0	12.0	12.0	80.00	15.5	6.00	SCMT 09T308 MT	9.52~	3.97~	0~	45.0~	SCREW ~	SQUARE ~	~	71E01A0E85121 ~	IS$$116671379128580 ~	IS$$150171461674900 ~	3600232		0
SSDCN 1616 H09	16.0	16.0	16.0	100.00	15.5	8.00	SCMT 09T308 MT	9.52~	3.97~	0~	45.0~	SCREW ~	SQUARE ~	~	71E01A0E85121 ~	IS$$116671379128580 ~	IS$$150171461674900 ~	3600234		0
