Turning
Main Application

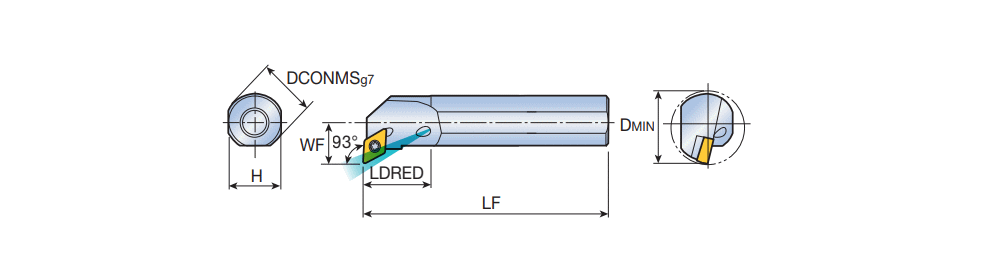

A-SDUNR/L : Screw type boring bars for 55° negative Rhombic inserts with coolant and 93° approach angle
Right-hand shown

Right-hand shown

  DesignationDCONMS H LF LDRED WF DMIN MIID IC t Kr KAPR CL Tool typ HAND ClssID IIC IIC_2 GICATGIREMgiicGICODE
  A20S SDUNL 11 20.0018.0250.0030.015.0027.00DNMA 110408 9.52~4.76~30~93.0~SCREW ~BORING BAR ~L ~71E01A0E9CBA9 ~IS$$567394293143920 ~IS$$612474122530520 ~3602147 0
  A20S SDUNR 11 20.0018.0250.0030.015.0027.00DNMA 110408 9.52~4.76~30~93.0~SCREW ~BORING BAR ~R ~71E01A0E9CBA9 ~IS$$567394293143920 ~IS$$612474122530520 ~6308510 0
  A25T SDUNL 11 25.0023.0300.0030.019.0033.00DNMA 110408 9.52~4.76~30~93.0~SCREW ~BORING BAR ~L ~71E01A0E9CBA9 ~IS$$567394293143920 ~IS$$612474122530520 ~3602157 0
  A25T SDUNR 11 25.0023.0300.0030.019.0033.00DNMA 110408 9.52~4.76~30~93.0~SCREW ~BORING BAR ~R ~71E01A0E9CBA9 ~IS$$567394293143920 ~IS$$612474122530520 ~3602151 0
  A32T SDUNL 11 32.0030.0300.0044.026.0044.00DNMA 110408 9.52~4.76~30~93.0~SCREW ~BORING BAR ~L ~71E01A0E9CBA9 ~IS$$567394293143920 ~IS$$612474122530520 ~3605345 0
  A32T SDUNR 11 32.0030.0300.0044.026.0044.00DNMA 110408 9.52~4.76~30~93.0~SCREW ~BORING BAR ~R ~71E01A0E9CBA9 ~IS$$567394293143920 ~IS$$612474122530520 ~3604880 0
