E-SCLPR/L : Carbide shank screw type boring bars with coolant for positive 80° Rhombic inserts of 7° clearance angle and 95° approach angle

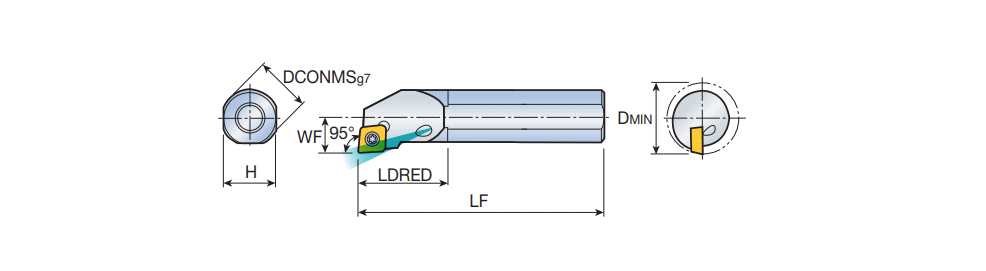

Right-hand shown

Designation	DCONMS	H	LF	LDRED	WF	DMIN	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID	IIC	GICAT
E08K SCLPL 06	8.00	7.0	125.00	15.0	6.00	11.00	6.35~	2.38~	95~	95.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CPMT 060204 PC	IS$$104016671268016 ~	3605851
E08K SCLPR 06	8.00	7.0	125.00	15.0	6.00	11.00	6.35~	2.38~	95~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CPMT 060204 PC	IS$$104016671268016 ~	3605850
E10K SCLPL 06	10.00	9.0	125.00	15.0	7.00	13.00	6.35~	2.38~	95~	95.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CPMT 060204 PC	IS$$104016671268016 ~	3605853
E10K SCLPR 06	10.00	9.0	125.00	15.0	7.00	13.00	6.35~	2.38~	95~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CPMT 060204 PC	IS$$104016671268016 ~	3605852
E12M SCLPL 09T3	12.00	11.0	150.00	19.0	9.00	16.00	9.52~	3.97~	95~	95.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CPMT 09T308 FS	IS$$116958417776000 ~	3605859
E12M SCLPL 0903	12.00	11.0	150.00	19.0	9.00	16.00	9.52~	3.18~	95~	95.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CPMT 090308 FG	IS$$178628560253350 ~	3605855
E12M SCLPR 09T3	12.00	11.0	150.00	19.0	9.00	16.00	9.52~	3.97~	95~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CPMT 09T308 PC	IS$$116958417776000 ~	3605858
E12M SCLPR 0903	12.00	11.0	150.00	19.0	9.00	16.00	9.52~	3.18~	95~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CPMT 090308 FG	IS$$178628560253350 ~	3605854
E16R SCLPL 09T3	16.00	15.0	200.00	22.0	11.00	20.00	9.52~	3.97~	95~	95.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CPMT 09T308 FS	IS$$116958417776000 ~	3605861
E16R SCLPL 0903	16.00	15.0	200.00	22.0	11.00	20.00	9.52~	3.18~	95~	95.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	CPMT 090308 FG	IS$$178628560253350 ~	3605857
E16R SCLPR 09T3	16.00	15.0	200.00	22.0	11.00	20.00	9.52~	3.97~	95~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CPMT 09T308 FS	IS$$116958417776000 ~	3605860
E16R SCLPR 0903	16.00	15.0	200.00	22.0	11.00	20.00	9.52~	3.18~	95~	95.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	CPMT 090308 FG	IS$$178628560253350 ~	3605856
