TaeguTec Cutting Tools - Metal Working Tools - Turning -

S-SVUBR/L : Screw type boring bars for positive 35° Rhombic inserts of 5° clearance angle with 93° approach angle

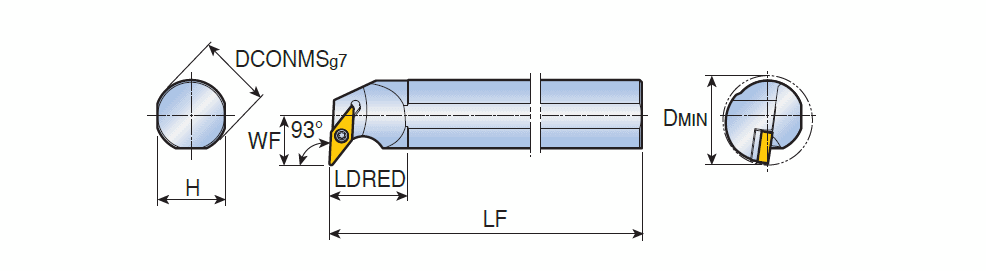

Right-hand shown

Designation	DCONMS	H	LF	LDRED	WF	DMIN	MIID	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	IIC	IIC_2	GICAT
S32T SVUBL 16	32.00	30.0	300.00	45.0	22.00	40.00	VBMT 160408 MT	9.52~	4.76~	50~	93.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	IS$$884209950608906 ~	IS$$974204253037744 ~	3604872
S32T SVUBR 16	32.00	30.0	300.00	45.0	22.00	40.00	VBMT 160408 MT	9.52~	4.76~	50~	93.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	IS$$884209950608906 ~	IS$$974204253037744 ~	3604865
S40T SVUBL 16	40.00	37.0	300.00	55.0	27.00	50.00	VBMT 160408 MT	9.52~	4.76~	50~	93.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	IS$$884209950608906 ~	IS$$974204253037744 ~	3604911
S40T SVUBR 16	40.00	37.0	300.00	55.0	27.00	50.00	VBMT 160408 MT	9.52~	4.76~	50~	93.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	IS$$884209950608906 ~	IS$$974204253037744 ~	3604912
