ANHX 11/16 R-SM : Chip splitter double-sided ground inserts with 4 helical cutting edges for general machining & 3 splitting grooves on one side & 2 splitting grooves on the opposite in 90° shoulders

TT3540&TT9540 : Available upon customer request.

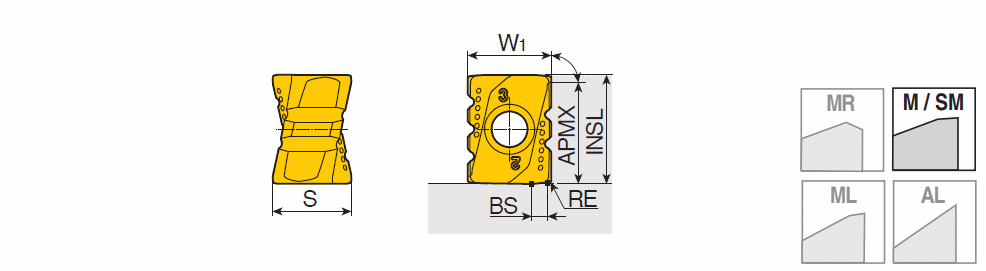

Designation	INSL	W1	S	BS	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
ANHX 160708R-SM	16.00	11.00	10.60	1.40	0.80	15.00	16.00~	4.50	12.00	0.200	0.100	M6 ~	4~	C2M-AN16 ~	A ~	71DD68D91938A ~	G60-CS ~	SM ~	TT6080~	IS$$671076056717965 ~	ANM(H)X 16 ~	0~	5616377		3		TT8080 TT9080 TT6080
