Turning
Main Application

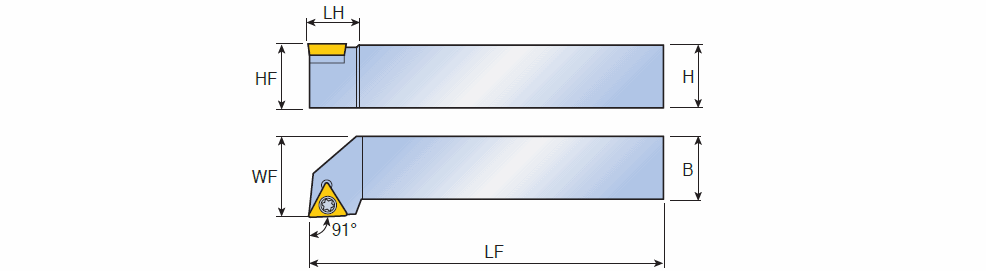

STGCR/L (Holder) : Screw type holders with 91° approach angle for positive Triangular insert of 7° clearance angle
Right-hand shown

Right-hand shown

  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC IIC_2 GICATGIREMgiicGICODE
  STGCL 1010 E09 10.010.010.070.0011.012.005.56~2.38~0~91.0~SCREW ~SQUARE ~L ~71E01A0E85121 ~TCMT 090204 MT IS$$133312066424145 ~ ~3600261 0
  STGCL 1212 F1102 12.012.012.080.0014.316.006.35~2.38~0~91.0~SCREW ~SQUARE ~L ~71E01A0E85121 ~TCMT 110204 MT IS$$410568644593476 ~IS$$500562293307948 ~3600263 0
  STGCR 1212 F1102 12.012.012.080.0014.316.006.35~2.38~0~91.0~SCREW ~SQUARE ~R ~71E01A0E85121 ~TCMT 110204 MT IS$$410568644593476 ~IS$$500562293307948 ~3600269 0
  STGCL 1616 H1102 16.016.016.0100.0014.320.006.35~2.38~0~91.0~SCREW ~SQUARE ~L ~71E01A0E85121 ~TCMT 110204 MT IS$$410568644593476 ~IS$$500562293307948 ~3600264 0
  STGCL 1616 H16 16.016.016.0100.0021.020.009.52~3.97~0~91.0~SCREW ~SQUARE ~L ~71E01A0E85121 ~TCMT 16T308 MT IS$$475366154239096 ~ ~3600265 0
  STGCR 1616 H1102 16.016.016.0100.0014.320.006.35~2.38~0~91.0~SCREW ~SQUARE ~R ~71E01A0E85121 ~TCMT 110204 MT IS$$410568644593476 ~IS$$500562293307948 ~3600270 0
  STGCR 1616 H16 16.016.016.0100.0021.020.009.52~3.97~0~91.0~SCREW ~SQUARE ~R ~71E01A0E85121 ~TCMT 16T308 MT IS$$475366154239096 ~ ~3600271 0
  STGCL 2020 K16 20.020.020.0125.0021.025.009.52~3.97~0~91.0~SCREW ~SQUARE ~L ~71E01A0E85121 ~TCMT 16T308 MT IS$$475366154239096 ~ ~3600266 0
  STGCR 2020 K16 20.020.020.0125.0021.025.009.52~3.97~0~91.0~SCREW ~SQUARE ~R ~71E01A0E85121 ~TCMT 16T308 MT IS$$475366154239096 ~ ~3600272 0
  STGCL 2525 M16 25.025.025.0150.0021.032.009.52~3.97~0~91.0~SCREW ~SQUARE ~L ~71E01A0E85121 ~TCMT 16T308 MT IS$$475366154239096 ~ ~3600560 0
  STGCR 2525 M16 25.025.025.0150.0021.032.009.52~3.97~0~91.0~SCREW ~SQUARE ~R ~71E01A0E85121 ~TCMT 16T308 MT IS$$475366154239096 ~ ~3600563 0
