Turning
Main Application

SVJBR/L (Holder) : Screw type holder with 93° approach angle for positive 35° Rhombic inserts of 5° clearance angle

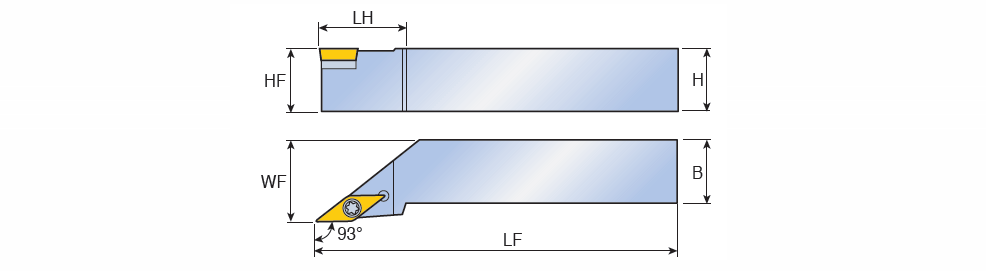

Right-hand shown

Right-hand shown

  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC IIC_2 GICATGIREMgiicGICODE
  SVJBL 2020 K16 20.020.020.0125.0035.025.009.52~4.76~44~93.0~SCREW ~SQUARE ~L ~71E01A0E85121 ~VBMT 160408 MT IS$$884209950608906 ~IS$$974204253037744 ~3600277 0
  SVJBR 2020 K16 20.020.020.0125.0035.025.009.52~4.76~44~93.0~SCREW ~SQUARE ~R ~71E01A0E85121 ~VBMT 160408 MT IS$$884209950608906 ~IS$$974204253037744 ~3600279 0
  SVJBL 2525 M16 25.025.025.0150.0035.032.009.52~4.76~44~93.0~SCREW ~SQUARE ~L ~71E01A0E85121 ~VBMT 160408 MT IS$$884209950608906 ~IS$$974204253037744 ~3600567 0
  SVJBR 2525 M16 25.025.025.0150.0035.032.009.52~4.76~44~93.0~SCREW ~SQUARE ~R ~71E01A0E85121 ~VBMT 160408 MT IS$$884209950608906 ~IS$$974204253037744 ~3600570 0
  SVJBL 3225 P16 32.032.025.0170.0035.032.009.52~4.76~44~93.0~SCREW ~SQUARE ~L ~71E01A0E85121 ~VBMT 160408 MT IS$$884209950608906 ~IS$$974204253037744 ~3600708 0
  SVJBL 3232 P16 32.032.032.0170.0035.040.009.52~4.76~44~93.0~SCREW ~SQUARE ~L ~71E01A0E85121 ~VBMT 160408 MT IS$$884209950608906 ~IS$$974204253037744 ~3602747 0
  SVJBR 3225 P16 32.032.025.0170.0035.032.009.52~4.76~44~93.0~SCREW ~SQUARE ~R ~71E01A0E85121 ~VBMT 160408 MT IS$$884209950608906 ~IS$$974204253037744 ~3600709 0
  SVJBR 3232 P16 32.032.032.0170.0035.040.009.52~4.76~44~93.0~SCREW ~SQUARE ~R ~71E01A0E85121 ~VBMT 160408 MT IS$$884209950608906 ~IS$$974204253037744 ~6342393 0
