TaeguTec Cutting Tools - Metal Working Tools - Turning -

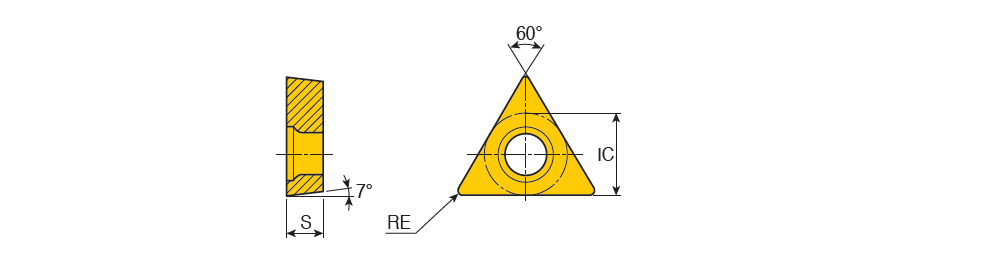

TCMT-FA : Positive Triangular inserts for super-finishing of steels, stainless steels & exotic materials with 7° clearance angle and excellent chip control

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TCMT 06T102 FA	3.97	1.98	0.20	6.00~	FA ~	60~	7.00~	0.40	1.20	0.03	0.15	3~	~	U ~	T ~	71DD68D8446CE ~	Cermet ~	CT3000~	3~	ISO$TC06T1023NB$$02 ~	.21.20 ~	TCMT ~	Y ~	6 ~	6121597	2	TT5100 CT3000
TCMT 110202 FA	6.35	2.38	0.20	11.00~	FA ~	60~	7.00~	0.10	1.50	0.03	0.15	3~	~	U ~	T ~	71DD68D8446CE ~	Cermet ~	8125B ~	3~	ISO$TC1102023NB$$02 ~	21.50. ~	TCMT ~	Y ~	11 ~	6241348	4	TT9080 TT8125B TT5080 CT3000
TCMT 110204 FA	6.35	2.38	0.40	11.00~	FA ~	60~	7.00~	0.10	1.50	0.05	0.15	3~	~	U ~	T ~	71DD68D8446CE ~	Cermet ~	CT3000~	3~	ISO$TC1102043NB$$04 ~	21.51 ~	TCMT ~	Y ~	11 ~	5802048	3	TT5100 CT3000 PV3010
