TaeguTec Cutting Tools - Metal Working Tools - Turning -

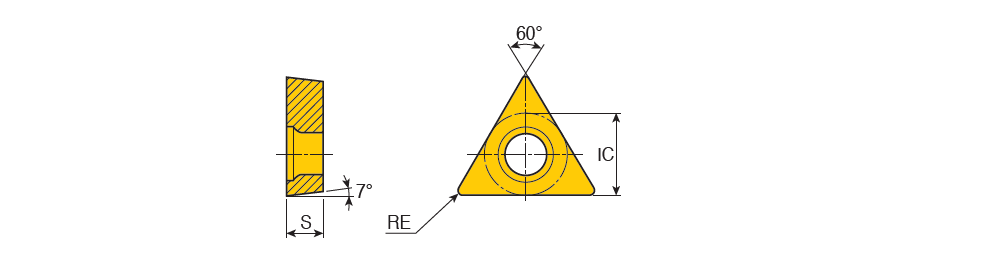

TCMT-FG : Positive Triangular inserts for finish to medium light applications of steels & stainless steels with 7° clearance angle & excellent chip control

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TCMT 090204 FG	5.56	2.38	0.40	7.90~	FG ~	60~	7.00~	0.50	1.50	0.10	0.25	3~	~	U ~	T ~	71DD68D8446CE ~	PVD ~	TT8080~	3~	ISO$TC0902043NB$$04 ~	731 FG ~	TCMT ~	Y ~	9 ~	6194909	1	TT8080
TCMT 090208 FG	5.56	2.38	0.80	7.60~	FG ~	60~	7.00~	0.60	1.50	0.10	0.25	3~	~	U ~	T ~	71DD68D8446CE ~	Cermet ~	8125B ~	3~	ISO$TC0902083NB$$08 ~	732 FG ~	TCMT ~	Y ~	9 ~	6212286	5	TT8080 TT5100 TT8125B CT3000 PV3010
TCMT 110204 FG	6.35	2.38	0.40	11.00~	FG ~	60~	7.00~	0.40	1.50	0.07	0.20	3~	~	U ~	T ~	71DD68D8446CE ~	Cermet ~	8125B ~	3~	ISO$TC1102043NB$$04 ~	21.51 ~	TCMT ~	Y ~	11 ~	6212338	10	TT8020 TT8080 TT9235 TT9080 TT9225 TT5100 TT8125B TT5080 CT3000 PV3010
TCMT 110208 FG	6.35	2.38	0.80	11.00~	FG ~	60~	7.00~	0.60	1.50	0.10	0.25	3~	~	U ~	T ~	71DD68D8446CE ~	Cermet ~	8115B ~	3~	ISO$TC1102083NB$$08 ~	21.52 ~	TCMT ~	Y ~	11 ~	6241645	11	TT8080 TT9235 TT9225 TT5100 TT8125B TT5080 TT8115B TT7015 TT7005 CT3000 PV3010
TCMT 16T304 FG	9.52	3.97	0.40	16.50~	FG ~	60~	7.00~	0.40	2.00	0.07	0.20	3~	~	U ~	T ~	71DD68D8446CE ~	Cermet ~	8125B ~	3~	ISO$TC16T3043NB$$04 ~	32.51 ~	TCMT ~	Y ~	16 ~	6212344	6	TT8020 TT8080 TT5100 TT8125B CT3000 PV3010
TCMT 16T308 FG	9.52	3.97	0.80	14.50~	FG ~	60~	7.00~	0.60	2.00	0.10	0.25	3~	~	U ~	T ~	71DD68D8446CE ~	Cermet ~	8115B ~	3~	ISO$TC16T3083NB$$08 ~	32.52 ~	TCMT ~	Y ~	16 ~	6212408	10	TT8080 TT9225 TT5100 TT8125B TT5080 TT8115B TT7015 TT7005 CT3000 PV3010
