TaeguTec Cutting Tools - Metal Working Tools - Turning -

TNGN-CERAMIC : Negative Triangular ground Ceramic inserts without hole for cast iron & hardened steel machining

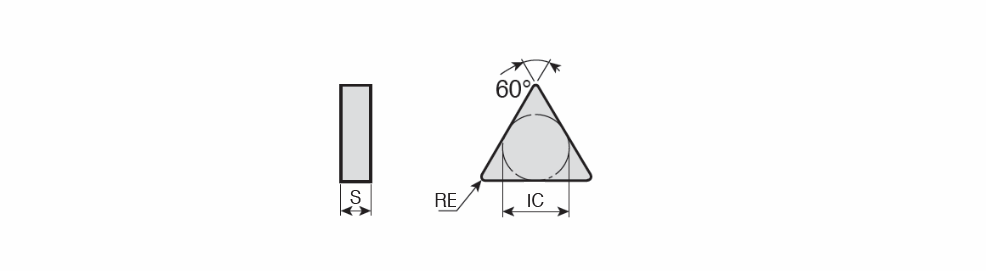

Designation	IC	S	RE	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNGN 110308	6.35	3.18	0.80	60~	0.00~	0.10	1.00	0.05	0.15	6~	P ~	~	11.00~	T ~	71DD68D8446CE ~	Ceramic ~	AB30 ~	1~	ISO$TN1103081NA$$08 ~	222 ~	TNG ~	Y ~	11 ~	5700701	1	AB30
TNGN 160404	9.52	4.76	0.40	60~	0.00~	0.10	2.50	0.05	0.15	6~	P ~	~	16.50~	T ~	71DD68D8446CE ~	Ceramic ~	AB20 ~	1~	ISO$TN1604041NA$$04 ~	331 ~	TNG ~	Y ~	16 ~	5701566	2	AB30 AB20
TNGN 160408	9.52	4.76	0.80	60~	0.00~	0.10	2.50	0.05	0.20	6~	P ~	~	16.50~	T ~	71DD68D8446CE ~	Ceramic ~	AB20 ~	1~	ISO$TN1604081NA$$08 ~	332 ~	TNG ~	Y ~	16 ~	5702706	4	AS10 AB30 AB20 AB2010
TNGN 160408 T7	9.52	4.76	0.80	60~	0.00~	0.10	2.50	0.05	0.20	6~	P ~	~	16.50~	T ~	71DD68D8446CE ~	Ceramic ~	AW120 ~	1~	ISO$TN1604081NA$$08 ~	332 T7 ~	TNG ~	Y ~	16 ~	6130281	1	AW120
TNGN 160412	9.52	4.76	1.20	60~	0.00~	0.10	2.50	0.05	0.25	6~	P ~	~	16.50~	T ~	71DD68D8446CE ~	Ceramic ~	AB20 ~	1~	ISO$TN1604121NA$$12 ~	333 ~	TNG ~	Y ~	16 ~	6185135	3	SC10 AB30 AB20
TNGN 160412 T7	9.52	4.76	1.20	60~	0.00~	0.10	2.50	0.05	0.25	6~	P ~	~	16.50~	T ~	71DD68D8446CE ~	Ceramic ~	AS500 ~	1~	ISO$TN1604121NA$$12 ~	33 T7 ~	TNG ~	Y ~	16 ~	5703751	2	AS500 AW120
TNGN 160416 T7	9.52	4.76	1.60	60~	0.00~	0.10	1.00	0.05	0.20	6~	P ~	~	16.50~	T ~	71DD68D8446CE ~	Ceramic ~	AW120 ~	1~	ISO$TN1604161NA$$16 ~	334 T7 ~	TNG ~	Y ~	16 ~	6130282	1	AW120

T6: Land 0.10 x 20°
T7: Land 0.2x20°, no honing
