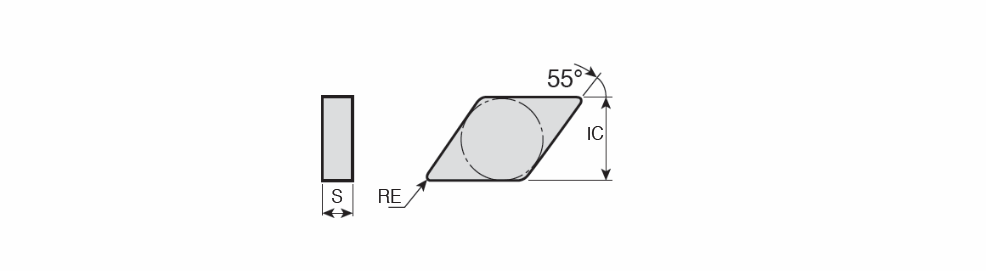

DNGN-CERAMIC : Negative 55° Rhombic ground Ceramic inserts without hole for cast iron & hardened steel machining

Designation	IC	S	RE	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
DNGN 150408	12.70	4.76	0.80	55~	0.00~	0.10	2.50	0.05	0.20	4~	P ~	~	15.50~	D ~	71DD68D301C30 ~	Ceramic ~	AB20 ~	1~	ISO$DN1504081NA$$08 ~	432 ~	DNG ~	Y ~	15 ~	5700051	1	AB20
DNGN 150704	12.70	7.94	0.40	55~	0.00~	0.10	2.50	0.05	0.15	4~	P ~	~	15.50~	D ~	71DD68D301C30 ~	Ceramic ~	AB30 ~	1~	ISO$DN1507041NA$$04 ~	51 ~	DNG ~	Y ~	15 ~	5701538	1	AB30
DNGN 150708	12.70	7.94	0.80	55~	0.00~	0.10	2.50	0.05	0.20	4~	P ~	~	15.50~	D ~	71DD68D301C30 ~	Ceramic ~	AB30 ~	1~	ISO$DN1507081NA$$08 ~	52 ~	DNG ~	Y ~	15 ~	5700398	1	AB30
DNGN 150708 T6	12.70	7.94	0.80	55~	0.00~	0.10	2.50	0.05	0.20	4~	P ~	~	15.50~	D ~	71DD68D301C30 ~	Ceramic ~	TC3020~	1~	ISO$DN1507081NA$$08 ~	52 T6 ~	DNG ~	Y ~	15 ~	6176725	1	TC3020
DNGN 150708 T7	12.70	7.94	0.80	55~	0.00~	0.10	2.50	0.05	0.20	4~	P ~	~	15.50~	D ~	71DD68D301C30 ~	Ceramic ~	AW120 ~	1~	ISO$DN1507081NA$$08 ~	52 T7 ~	DNG ~	Y ~	15 ~	5703581	1	AW120
DNGN 150712 T6	12.70	7.94	1.20	55~	0.00~	0.10	2.50	0.05	0.25	4~	P ~	~	15.50~	D ~	71DD68D301C30 ~	Ceramic ~	TC3020~	1~	ISO$DN1507121NA$$12 ~	53 T6 ~	DNG ~	Y ~	~	6176726	1	TC3020
DNGN 150712 T7	12.70	7.94	1.20	55~	0.00~	0.10	2.50	0.05	0.25	4~	P ~	~	15.50~	D ~	71DD68D301C30 ~	Ceramic ~	AW120 ~	1~	ISO$DN1507121NA$$12 ~	53 T7 ~	DNG ~	Y ~	15 ~	5703582	1	AW120
DNGN 150712 U2	12.70	7.94	1.20	55~	0.00~	0.10	2.50	0.05	0.25	4~	P ~	~	15.50~	D ~	71DD68D301C30 ~	Ceramic ~	AB30 ~	1~	ISO$DN1507121NA$$12 ~	53 U2 ~	DNG ~	Y ~	15 ~	5701423	1	AB30
DNGN 150716 U2	12.70	7.94	1.60	55~	0.00~	0.10	2.50	0.05	0.30	4~	P ~	~	15.50~	D ~	71DD68D301C30 ~	Ceramic ~	AB30 ~	1~	ISO$DN1507161NA$$16 ~	54 U2 ~	DNG ~	Y ~	15 ~	5700406	1	AB30

U2: 1st Land 1.5 x 15° & 2nd Land 0.15-0.2 x 30°
T7: Land 0.2x20°, no honing
