TaeguTec Cutting Tools - Metal Working Tools - Turning -

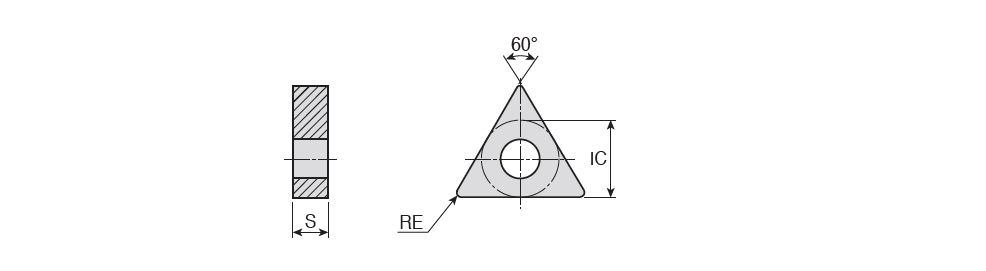

TNMG-CE (Ceramic) : Negative Triangular Ceramic pressed insert of CE chip former with reinforced T-land for high speed machining of cast irons

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
TNMG 160408 CE	9.52	4.76	0.80	16.50~	CE ~	60~	0.00~	0.10	2.50	0.05	0.20	6~	~	U ~	T ~	71DD68D8446CE ~	Ceramic ~	AB30 ~	2~	ISO$TN1604082NB$$08 ~	332 CE ~	TNMG ~	Y ~	16 ~	5701582		1		AB30
