TaeguTec Cutting Tools - Metal Working Tools - Turning -

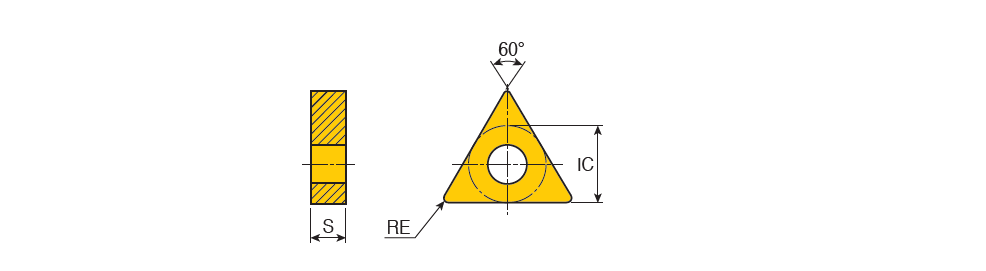

TNMG-FG : Negative Triangular inserts for finishing & semi-finishing of steels, stainless steels and cast irons

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMG 110304 FG	6.35	3.18	0.40	10.00~	FG ~	60~	0.00~	0.50	1.50	0.07	0.20	6~	~	U ~	T ~	71DD68D8446CE ~	Cermet ~	CT3000~	2~	ISO$TN1103042NB$$04 ~	221 FG ~	TNMG ~	Y ~	11 ~	5801737	2	TT5100 CT3000
TNMG 160308 FG	9.52	3.18	0.80	16.50~	FG ~	60~	0.00~	0.50	2.00	0.07	0.20	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8125B ~	2~	ISO$TN1603082NB$$08 ~	322 FG ~	TNMG ~	Y ~	16 ~	6212348	1	TT8125B
TNMG 160404 FG	9.52	4.76	0.40	15.50~	FG ~	60~	0.00~	0.50	2.00	0.07	0.20	6~	~	U ~	T ~	71DD68D8446CE ~	Cermet ~	8105B ~	2~	ISO$TN1604042NB$$04 ~	331 FG ~	TNMG ~	Y ~	~	6247914	6	TT9080 TT5100 TT8125B TT8105B CT3000 PV3010
TNMG 160408 FG	9.52	4.76	0.80	16.50~	FG ~	60~	0.00~	0.70	2.00	0.10	0.25	6~	~	U ~	T ~	71DD68D8446CE ~	Cermet ~	8115B ~	2~	ISO$TN1604082NB$$08 ~	332 FG ~	TNMG ~	Y ~	16 ~	6241354	5	TT5100 TT8125B TT8115B CT3000 PV3010
TNMG 160412 FG	9.52	4.76	1.20	16.50~	FG ~	60~	0.00~	0.70	2.00	0.13	0.30	6~	~	U ~	T ~	71DD68D8446CE ~	Cermet ~	8105B ~	2~	ISO$TN1604122NB$$12 ~	333 FG ~	TNMG ~	Y ~	16 ~	6242325	2	TT8105B CT3000
TNMG 220408 FG	12.70	4.76	0.80	22.00~	FG ~	60~	0.00~	0.70	2.00	0.10	0.25	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8115B ~	2~	ISO$TN2204082NB$$08 ~	432 FG ~	TNMG ~	Y ~	22 ~	6212443	2	TT8125B TT8115B

Click the Better Suggestions icon to see more choices.
