TaeguTec Cutting Tools - Metal Working Tools - Turning -

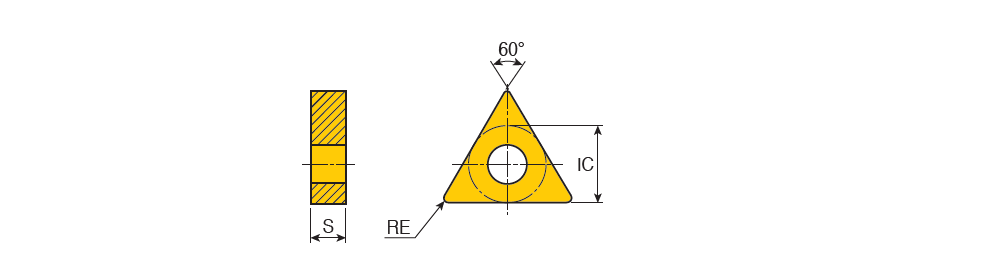

TNMG-MP : Negative 60° Triangular inserts for medium machining of steels & stainless steels

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMG 160404 MP	9.52	4.76	0.40	16.50~	MP ~	60~	0.00~	0.80	3.50	0.10	0.30	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	TT3010~	2~	ISO$TN1604042NB$$04 ~	331 MP ~	TNMG ~	Y ~	16 ~	6336781	9	TT8020 TT9235 TT9080 TT9225 TT3020 TT5100 TT3010 TT5080 TT9215
TNMG 160408 MP	9.52	4.76	0.80	14.50~	MP ~	60~	0.00~	1.00	3.50	0.12	0.40	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8125B ~	2~	ISO$TN1604082NB$$08 ~	332 MP ~	TNMG ~	Y ~	16 ~	6336784	9	TT8020 TT9235 TT9080 TT9225 TT3020 TT5100 TT8125B TT3010 TT5080
TNMG 160412 MP	9.52	4.76	1.20	16.50~	MP ~	60~	0.00~	1.50	3.50	0.15	0.40	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8115B ~	2~	ISO$TN1604122NB$$12 ~	333 MP ~	TNMG ~	Y ~	16 ~	6336787	7	TT9235 TT9225 TT3020 TT5100 TT3010 TT5080 TT8115B
TNMG 220404 MP	12.70	4.76	0.40	21.00~	MP ~	60~	0.00~	1.00	3.50	0.12	0.35	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8125B ~	2~	ISO$TN2204042NB$$04 ~	431 MP ~	TNMG ~	Y ~	22 ~	6212515	3	TT9225 TT8125B TT5080
TNMG 220408 MP	12.70	4.76	0.80	22.00~	MP ~	60~	0.00~	1.00	4.00	0.12	0.40	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8125B ~	2~	ISO$TN2204082NB$$08 ~	432 MP ~	TNMG ~	Y ~	22 ~	6212392	6	TT8020 TT9080 TT9225 TT5100 TT8125B TT5080
