TaeguTec Cutting Tools - Metal Working Tools - Turning -

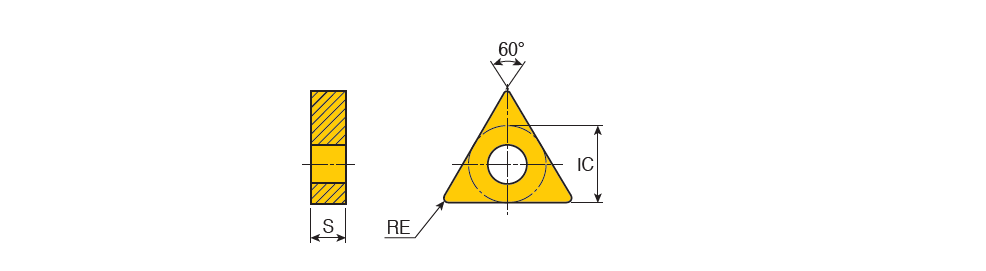

TNMG-FT (RHINO) : Negative 60° Triangular RHINOTURN inserts with serrated cutting edge for semi-finishing & medium machining of automotive steel components

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMG 130404 FT	7.94	4.76	0.40	FT ~	60~	0.00~	0.25	2.50	0.07	0.30	6~	~	U ~	13.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	TT5100~	2~	ISO$TN1304042NB$$04 ~	2.531 ~	TNMG ~	Y ~	13 ~	6118427	1	TT5100
TNMG 130408 FT	7.94	4.76	0.80	FT ~	60~	0.00~	0.30	2.50	0.10	0.40	6~	~	U ~	13.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	8105B ~	2~	ISO$TN1304082NB$$08 ~	2.532 ~	TNMG ~	Y ~	13 ~	6213009	4	TT5100 TT8125B TT8115B TT8105B
TNMG 130412 FT	7.94	4.76	1.20	FT ~	60~	0.00~	0.35	2.50	0.15	0.50	6~	~	U ~	13.00~	T ~	71DD68D8446CE ~	RHINO-TURN ~	CVD ~	8105B ~	2~	ISO$TN1304122NB$$12 ~	2.533 ~	TNMG ~	Y ~	13 ~	6223663	2	TT8115B TT8105B
