TPGN-CBN : Positive triangular inserts with CBN tips for finishing of hardened steel and cast iron

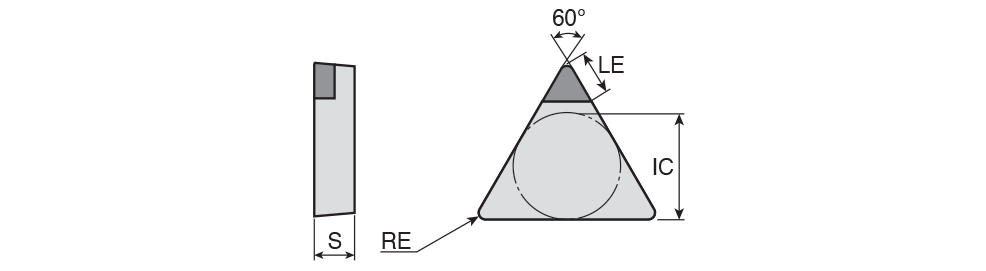

Designation	LE	IC	S	RE	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TPGN 090204 LS3	2.30	5.56	2.38	0.40	60~	11.00~	0.05	0.50	0.05	0.30	3~	P ~	~	9.60~	T ~	71DD68D8446CE ~	CBN ~	TB610 ~	3~	ISO$TP0902043NA$$04 ~	31 LS3 ~	TPG ~	Y ~	9 ~	5403011	1	TB610
TPGN 110308 LS3	2.30	6.35	3.18	0.80	60~	11.00~	0.05	0.50	0.05	0.30	3~	P ~	~	11.00~	T ~	71DD68D8446CE ~	CBN ~	TB610 ~	3~	ISO$TP1103083NA$$08 ~	22 LS3 ~	TPG ~	Y ~	11 ~	5403090	2	TB670 TB610
TPGN 160308 LS	2.50	9.52	3.18	0.80	60~	11.00~	0.05	0.50	0.05	0.30	1~	P ~	~	16.50~	T ~	71DD68D8446CE ~	CBN ~	TB650 ~	3~	ISO$TP1603083NA$$08 ~	322 LS ~	TPG ~	Y ~	16 ~	5400933	1	TB650
TPGN 160308 LS3	2.50	9.52	3.18	0.80	60~	11.00~	0.05	0.50	0.05	0.30	3~	P ~	~	16.50~	T ~	71DD68D8446CE ~	CBN ~	TB610 ~	3~	ISO$TP1603083NA$$08 ~	22 LS3 ~	TPG ~	Y ~	16 ~	5403092	2	TB670 TB610
TPGN 110304 LS	2.60	6.35	3.18	0.40	60~	11.00~	0.05	0.50	0.05	0.30	1~	P ~	~	11.00~	T ~	71DD68D8446CE ~	CBN ~	KB50 ~	3~	ISO$TP1103043NA$$04 ~	221 LS ~	TPG ~	Y ~	~	6210545	2	TB7015 KB50
TPGN 160304 LS	2.80	9.52	3.18	0.40	60~	11.00~	0.05	0.50	0.05	0.30	1~	P ~	~	16.50~	T ~	71DD68D8446CE ~	CBN ~	TB650 ~	3~	ISO$TP1603043NA$$04 ~	321 LS ~	TPG ~	Y ~	16 ~	5400930	1	TB650
TPGN 160304 LS3	2.80	9.52	3.18	0.40	60~	11.00~	0.05	0.50	0.05	0.30	3~	P ~	~	16.50~	T ~	71DD68D8446CE ~	CBN ~	TB610 ~	3~	ISO$TP1603043NA$$04 ~	21 LS3 ~	TPG ~	Y ~	16 ~	5403091	2	TB670 TB610

LS : Small size CBN tip
LS3 : Small size CBN tip with three corners
