TaeguTec Cutting Tools - Metal Working Tools - Turning -

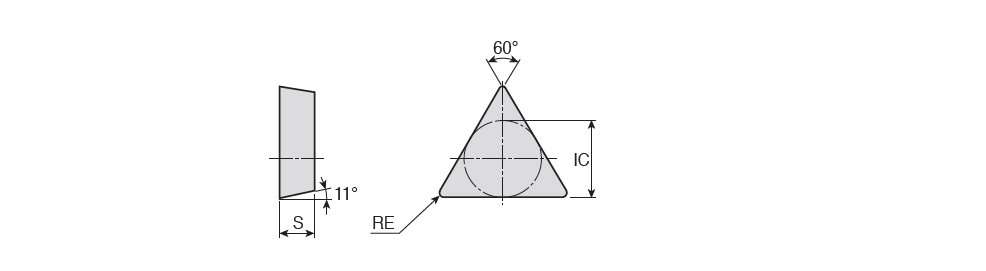

TPGN-CERAMIC : Positive Triangular ground Ceramic inserts of 11° clearance angle without hole for cast iron & hardened steel machining

Designation	IC	S	RE	l	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TPGN 110304	6.35	3.18	0.40	11.00~	60~	11.00~	0.10	2.00	0.05	0.10	3~	P ~	~	T ~	71DD68D8446CE ~	Ceramic ~	AB20 ~	3~	ISO$TP1103043NA$$04 ~	221 ~	TPG ~	Y ~	11 ~	5702707	3	AB30 AB20 AB2010
TPGN 110308	6.35	3.18	0.80	11.00~	60~	11.00~	0.10	2.00	0.05	0.10	3~	P ~	~	T ~	71DD68D8446CE ~	Ceramic ~	AB20 ~	3~	ISO$TP1103083NA$$08 ~	222 ~	TPG ~	Y ~	11 ~	5702708	3	AB30 AB20 AB2010
TPGN 160304	9.52	3.18	0.40	16.50~	60~	11.00~	0.10	2.50	0.05	0.15	3~	P ~	~	T ~	71DD68D8446CE ~	Ceramic ~	AB20 ~	3~	ISO$TP1603043NA$$04 ~	321 ~	TPG ~	Y ~	16 ~	5702709	3	AB30 AB20 AB2010
TPGN 160308	9.52	3.18	0.80	16.50~	60~	11.00~	0.10	2.50	0.05	0.20	3~	P ~	~	T ~	71DD68D8446CE ~	Ceramic ~	AB20 ~	3~	ISO$TP1603083NA$$08 ~	322 ~	TPG ~	Y ~	16 ~	5702710	3	AB30 AB20 AB2010
TPGN 160308 T6	9.52	3.18	0.80	11.00~	60~	11.00~	0.10	2.50	0.05	0.20	3~	P ~	~	T ~	71DD68D8446CE ~	Ceramic ~	TC430 ~	3~	ISO$TP1603083NA$$08 ~	22 T6 ~	TPG ~	Y ~	16 ~	5703657	1	TC430
TPGN 220408	12.70	4.76	0.80	22.00~	60~	11.00~	0.10	3.00	0.05	0.20	3~	P ~	~	T ~	71DD68D8446CE ~	Ceramic ~	AB30 ~	3~	ISO$TP2204083NA$$08 ~	432 ~	TPG ~	Y ~	22 ~	5700775	1	AB30

T2: Land 0.10 x 30°
