TaeguTec Cutting Tools - Metal Working Tools - Turning -

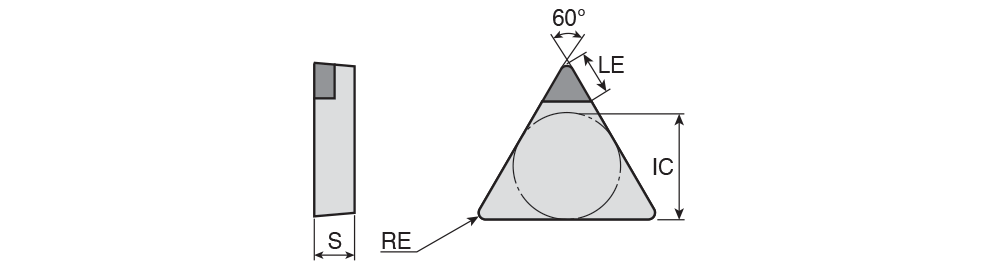

TPGN-PCD : Positive Triangular inserts with single PCD tip of positive rake angle for finishing of aluminum & non-ferrous metals

Designation	LE	IC	S	RE	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
TPGN 160304 LN-7	4.30	9.52	3.18	0.40	60~	11.00~	0.10	2.00	0.05	0.30	1~	P ~	~	16.50~	T ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$TP1603043NA$$04 ~	321 LN ~	TPG ~	Y ~	16 ~	6264346		1		TD1020
TPGN 160302 LN-7	4.40	9.52	3.18	0.20	60~	11.00~	0.10	2.00	0.05	0.30	1~	P ~	~	16.50~	T ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$TP1603023NA$$02 ~	320.5 ~	TPG ~	Y ~	16 ~	6264345		1		TD1020
