TaeguTec Cutting Tools - Metal Working Tools - Turning -

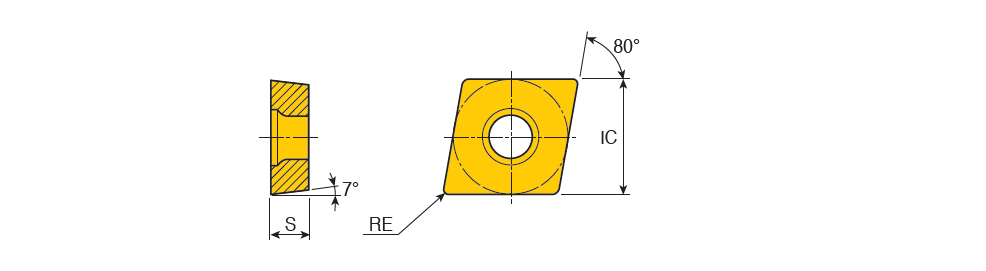

CCMT-FA : Positive 80° Rhombic inserts for super-finishing of steels, stainless steels and exotic materials with 7° clearance angle and excellent chip control

Designation	IC	S	RE	D1	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CCMT 060202 FA	6.35	2.38	0.20	2.80~	6.30~	FA ~	80~	7.00~	0.10	1.50	0.03	0.15	2~	~	~	C ~	71DD68D301C30 ~	Cermet ~	CT3000~	3~	ISO$CC0602023NB$$02 ~	21.50. ~	CCMT ~	Y ~	6 ~	6165535	6	TT9080 TT9225 TT5100 TT5080 CT3000 PV3010
CCMT 060204 FA	6.35	2.38	0.40	2.80~	6.30~	FA ~	80~	7.00~	0.20	1.50	0.05	0.15	2~	~	U ~	C ~	71DD68D301C30 ~	Cermet ~	8125B ~	3~	ISO$CC0602043NB$$04 ~	21.51 ~	CCMT ~	Y ~	6 ~	6212579	6	TT8020 TT5100 TT8125B TT5080 CT3000 PV3010
CCMT 09T302 FA	9.52	3.97	0.20	4.40~	9.70~	FA ~	80~	7.00~	0.10	2.00	0.03	0.15	2~	~	~	C ~	71DD68D301C30 ~	Cermet ~	CT3000~	3~	ISO$CC09T3023NB$$02 ~	32.50. ~	CCMT ~	Y ~	9 ~	6172403	6	TT9080 TT9225 TT5100 TT5080 CT3000 PV3010
CCMT 09T304 FA	9.52	3.97	0.40	4.40~	9.70~	FA ~	80~	7.00~	0.20	2.00	0.05	0.20	2~	~	U ~	C ~	71DD68D301C30 ~	Cermet ~	CT3000~	3~	ISO$CC09T3043NB$$04 ~	32.51 ~	CCMT ~	Y ~	9 ~	6157962	6	TT8020 TT9080 TT5100 TT5080 CT3000 PV3010
CCMT 09T308 FA	9.52	3.97	0.80	4.40~	9.70~	FA ~	80~	7.00~	0.30	2.00	0.08	0.25	2~	~	U ~	C ~	71DD68D301C30 ~	Cermet+PVD ~	8125B ~	3~	ISO$CC09T3083NB$$08 ~	32.52 ~	CCMT ~	Y ~	~	6241750	4	TT5100 TT8125B TT5080 PV3010

Click the Better Suggestions icon to see more choices.
