TaeguTec Cutting Tools - Metal Working Tools - Turning -

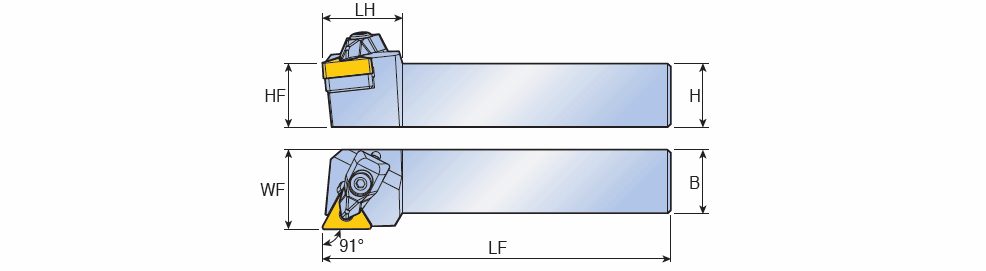

TTGNR/L... : T-holders with 91° approach angle for negative Triangular inserts

Right-hand shown

Designation	HF	H	B	LF	LH	WF	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID	IIC	IIC_2	IIC_3	GICAT	GIREM	giic	GICODE
TTGNL 2525 M16	25.0	25.0	25.0	150.00	25.0	32.00	9.52~	4.76~	0~	91.0~	T-HOLDER ~	SQUARE ~	L ~	71E01A0E85121 ~	TNGA 160408	IS$$499577722031119 ~	IS$$499578017563422 ~	IS$$979311444151597 ~	3602476		0
TTGNR 2525 M16	25.0	25.0	25.0	150.00	25.0	32.00	9.52~	4.76~	0~	91.0~	T-HOLDER ~	SQUARE ~	R ~	71E01A0E85121 ~	TNGA 160408	IS$$505657970253056 ~	IS$$505658269163133 ~	IS$$979311444151597 ~	3602452		0
