TaeguTec Cutting Tools - Metal Working Tools - Turning -

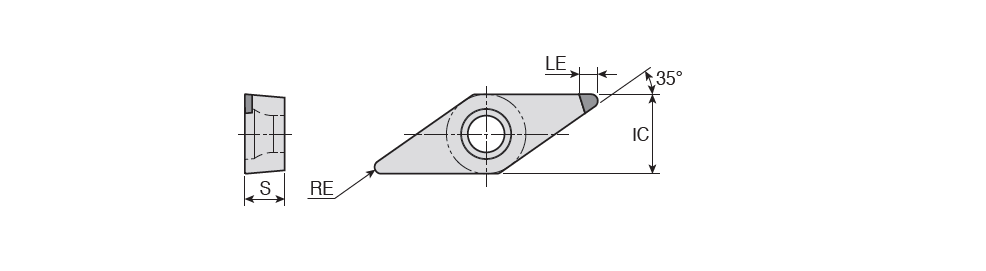

VBGW-PCD : Positive 35° Rhombic inserts with single PCD tip of positive rake angle for finishing of aluminum & non-ferrous metals

Designation	LE	IC	S	RE	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VBGW 160408 LN-7	4.20	9.52	4.76	0.80	35~	5.00~	0.10	2.00	0.05	0.30	1~	P ~	~	16.60~	V ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$VB1604083NA$$08 ~	160408 ~	VBGW ~	Y ~	16 ~	6264349	2	TD810 TD1020
VBGW 160404 LN-7	5.00	9.52	4.76	0.40	35~	5.00~	0.10	2.00	0.05	0.30	1~	P ~	~	16.60~	V ~	71DD68D301C30 ~	PCD ~	KP300 ~	3~	ISO$VB1604043NA$$04 ~	160404 ~	VBGW ~	Y ~	16 ~	6264348	3	TD810 KP300 TD1020
VBGW 160402 LN-7	5.20	9.52	4.76	0.20	35~	5.00~	0.10	2.00	0.05	0.30	1~	P ~	~	16.60~	V ~	71DD68D301C30 ~	PCD ~	TD1020~	3~	ISO$VB1604023NA$$02 ~	330.5 ~	VBGW ~	Y ~	16 ~	6264347	1	TD1020
