TaeguTec Cutting Tools - Metal Working Tools - Turning -

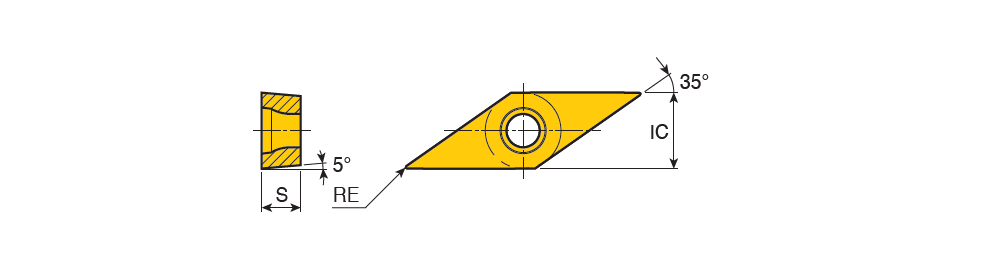

VBMT-FG : Positive 35° Rhombic inserts for finish to medium light applications of steels & stainless steels with 5° clearance angle & excellent chip control

Designation	IC	S	RE	D1	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VBMT 160404 FG	9.52	4.76	0.40	4.40~	16.60~	FG ~	35~	5.00~	0.20	1.50	0.07	0.18	2~	~	U ~	V ~	71DD68D301C30 ~	Cermet ~	8105B ~	3~	ISO$VB1604043NB$$04 ~	331 FG ~	VBMT ~	Y ~	16 ~	6342040		15		TT8020 TT8080 TT9225 TT3020 TT5100 TT8125B TT3010 TT5080 TT9215 TT3005 TT8115B TT8105B TT7005 CT3000 PV3010
VBMT 160408 FG	9.52	4.76	0.80	4.40~	16.60~	FG ~	35~	5.00~	0.40	1.50	0.10	0.18	2~	~	U ~	V ~	71DD68D301C30 ~	Cermet ~	8105B ~	3~	ISO$VB1604083NB$$08 ~	332 FG ~	VBMT ~	Y ~	16 ~	6342041		16		TT8080 TT9080 TT9225 TT3020 TT5100 TT8125B TT3010 TT5080 TT9215 TT3005 TT8115B TT8105B TT7015 TT7005 CT3000 PV3010

Click the Better Suggestions icon to see more choices.
