TaeguTec Cutting Tools - Metal Working Tools - Turning -

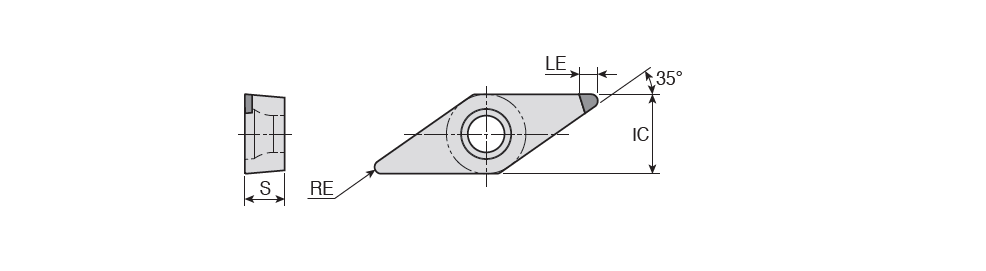

VCGW-PCD : Positive 35° Rhombic inserts with single PCD tip of positive rake angle for finishing of aluminum & non-ferrous metal

Designation	LE	IC	S	RE	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VCGW 160408 LN-7	4.10	9.52	4.76	0.80	35~	7.00~	0.10	2.00	0.05	0.30	1~	P ~	~	16.60~	V ~	71DD68D301C30 ~	PCD ~	TD1010~	3~	ISO$VC1604083NA$$08 ~	332 LN ~	VCGW ~	Y ~	16 ~	6264355	3	TD1030 TD1010 TD1020
VCGW 110304 LN-7	5.00	6.35	3.18	0.40	35~	7.00~	0.10	2.00	0.05	0.30	2~	P ~	~	11.10~	V ~	71DD68D301C30 ~	PCD ~	TD810 ~	3~	ISO$VC1103043NA$$04 ~	110304 ~	VCGW ~	Y ~	11 ~	5403620	1	TD810
VCGW 160404 LN-7	5.00	9.52	4.76	0.40	35~	7.00~	0.10	2.00	0.05	0.30	1~	P ~	~	16.60~	V ~	71DD68D301C30 ~	PCD ~	TD1010~	3~	ISO$VC1604043NA$$04 ~	160404 ~	VCGW ~	Y ~	16 ~	6264352	4	TD1030 TD810 TD1010 TD1020
