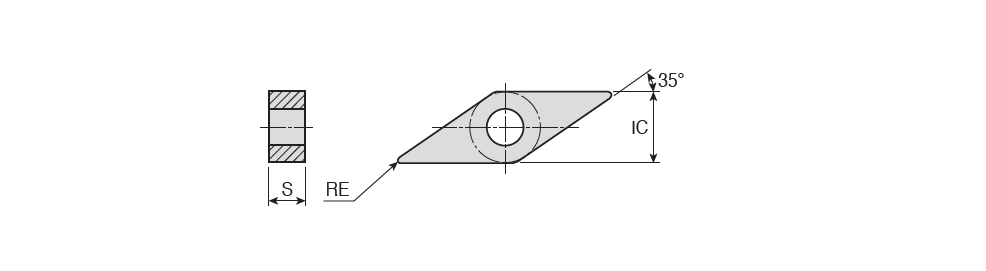

VNGA-CERAMIC : Negative 35° Rhombic ground Ceramic inserts with hole for cast iron & hardened steel machining

Designation	IC	S	RE	l	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VNGA 160404	9.52	4.76	0.40	16.60~	35~	0.00~	0.05	1.00	0.05	0.10	4~	P ~	~	V ~	71DD68D301C30 ~	Ceramic ~	AB20 ~	2~	ISO$VN1604042NA$$04 ~	331 ~	VNGA ~	Y ~	16 ~	5702711	3	AB30 AB20 AB2010
VNGA 160408	9.52	4.76	0.80	16.60~	35~	0.00~	0.05	1.00	0.05	0.15	4~	P ~	~	V ~	71DD68D301C30 ~	Ceramic ~	AB20 ~	2~	ISO$VN1604082NA$$08 ~	332 ~	VNGA ~	Y ~	16 ~	5702712	3	AB30 AB20 AB2010
VNGA 160412	9.52	4.76	1.20	16.60~	35~	0.00~	0.05	1.50	0.05	0.20	4~	P ~	~	V ~	71DD68D301C30 ~	Ceramic ~	AB20 ~	2~	ISO$VN1604122NA$$12 ~	333 ~	VNGA ~	Y ~	16 ~	5700788	2	AB30 AB20
VNGA 220412	12.70	4.76	1.20	22.00~	35~	0.00~	0.05	2.00	0.05	0.20	4~	P ~	~	V ~	71DD68D301C30 ~	Ceramic ~	AB30 ~	2~	ISO$VN2204122NA$$12 ~	433 ~	VNGA ~	Y ~	22 ~	5701346	1	AB30

E : Honing without T-land
