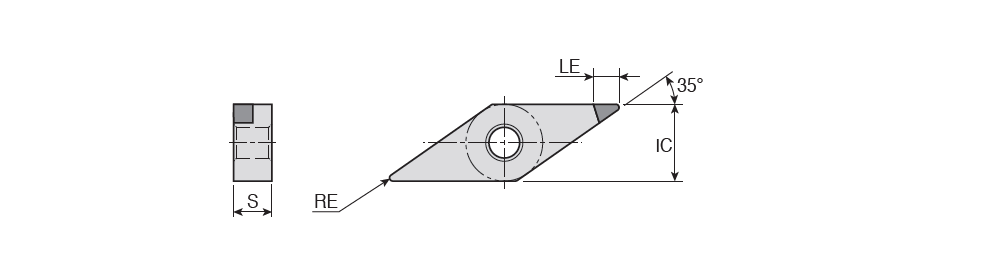

VNGA-PCD : Negative 35° Rhombic inserts with single PCD tip of positive angle for finishing of aluminum and non-ferrous metal

Designation	LE	IC	S	RE	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
VNGA 160408 LN-10	4.10	9.52	4.76	0.80	35~	0.00~	0.10	2.00	0.05	0.20	2~	P ~	~	16.60~	V ~	71DD68D301C30 ~	PCD ~	TD810 ~	2~	ISO$VN1604082NA$$08 ~	160408 ~	VNGA ~	Y ~	16 ~	5403623		1		TD810
VNGA 160404 LN-10	5.00	9.52	4.76	0.40	35~	0.00~	0.10	2.00	0.05	0.20	1~	P ~	~	16.60~	V ~	71DD68D301C30 ~	PCD ~	TD1020~	2~	ISO$VN1604042NA$$04 ~	331 LN ~	VNGA ~	Y ~	16 ~	6264362		1		TD1020
