TaeguTec Cutting Tools - Metal Working Tools - Turning -

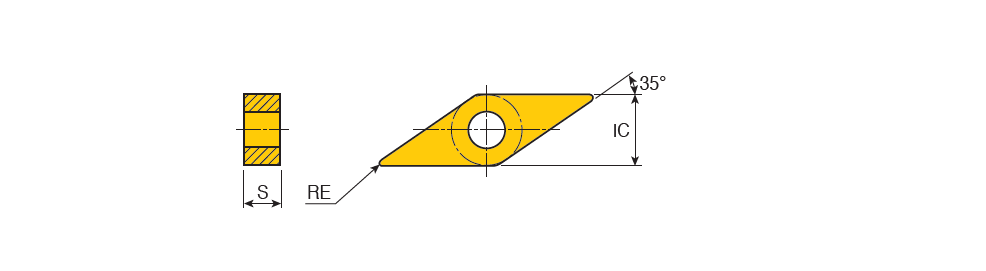

VNMG-FG : Negative 35° Rhombic inserts for finishing & semi-finishing of steels, stainless steels and cast irons

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VNMG 130404 FG	7.94	4.76	0.40	10.80~	FG ~	35~	0.00~	0.50	1.50	0.08	0.20	4~	~	U ~	V ~	71DD68D301C30 ~	Cermet ~	8125B ~	2~	ISO$VN1304042NB$$04 ~	2.531 ~	VNMG ~	Y ~	13 ~	6212721	4	TT5100 TT8125B TT5080 CT3000
VNMG 130408 FG	7.94	4.76	0.80	13.00~	FG ~	35~	0.00~	0.50	2.00	0.10	0.23	4~	~	U ~	V ~	71DD68D301C30 ~	Cermet ~	8115B ~	2~	ISO$VN1304082NB$$08 ~	2.532 ~	VNMG ~	Y ~	13 ~	6212706	5	TT5100 TT8125B TT5080 TT8115B CT3000
VNMG 160404 FG	9.52	4.76	0.40	15.60~	FG ~	35~	0.00~	0.50	2.00	0.08	0.20	4~	~	U ~	V ~	71DD68D301C30 ~	Cermet ~	8105B ~	2~	ISO$VN1604042NB$$04 ~	331 FG ~	VNMG ~	Y ~	16 ~	6241935	8	TT8020 TT9225 TT5100 TT5080 TT8115B TT8105B CT3000 PV3010
VNMG 160408 FG	9.52	4.76	0.80	16.60~	FG ~	35~	0.00~	0.50	2.00	0.10	0.23	4~	~	U ~	V ~	71DD68D301C30 ~	Cermet ~	8105B ~	2~	ISO$VN1604082NB$$08 ~	332 FG ~	VNMG ~	Y ~	16 ~	6241189	7	TT5100 TT8125B TT5080 TT8115B TT8105B CT3000 PV3010

Click the Better Suggestions icon to see more choices.
