TaeguTec Cutting Tools - Metal Working Tools - Turning -

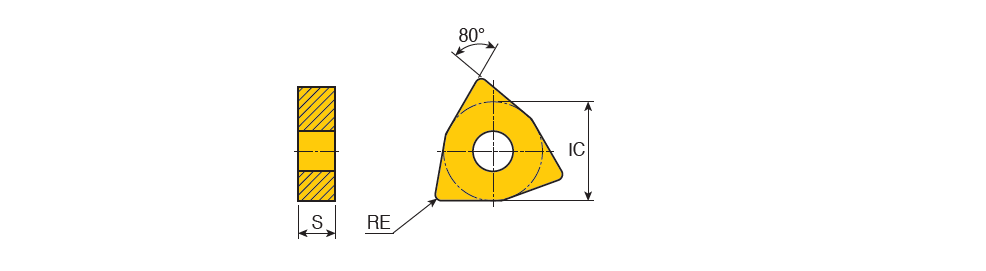

WNMA : Negative 80° Trigon inserts without chip former for roughing of cast irons

Designation	IC	S	RE	l	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMA 060408	9.52	4.76	0.80	6.52~	80~	0.00~	1.00	4.00	0.15	0.70	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT7005~	2~	ISO$WN0604082NA$$08 ~	332 ~	WNMA ~	Y ~	6 ~	5523856	2	TT7015 TT7005
WNMA 060412	9.52	4.76	1.20	6.52~	80~	0.00~	1.50	4.00	0.20	0.80	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT7005~	2~	ISO$WN0604122NA$$12 ~	333 ~	WNMA ~	Y ~	6 ~	5523875	1	TT7005
WNMA 080408	12.70	4.76	0.80	8.70~	80~	0.00~	1.00	5.00	0.15	0.70	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT7005~	2~	ISO$WN0804082NA$$08 ~	432 ~	WNMA ~	Y ~	8 ~	5523608	2	TT7015 TT7005
WNMA 080412	12.70	4.76	1.20	8.70~	80~	0.00~	1.50	5.00	0.20	0.80	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT7005~	2~	ISO$WN0804122NA$$12 ~	433 ~	WNMA ~	Y ~	8 ~	5523551	2	TT7015 TT7005
WNMA 080416	12.70	4.76	1.60	8.70~	80~	0.00~	1.50	5.00	0.20	0.80	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	TT7005~	2~	ISO$WN0804162NA$$16 ~	434 ~	WNMA ~	Y ~	8 ~	5523758	2	TT7015 TT7005
