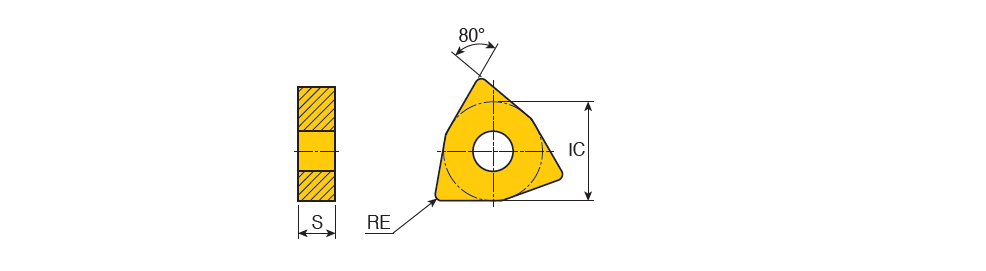

WNMG-FG : Negative 80° Trigon inserts for finishing & semi-finishing of steels, stainless steels and cast irons

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 060404 FG	9.52	4.76	0.40	6.52~	FG ~	80~	0.00~	0.50	2.00	0.07	0.20	6~	~	U ~	W ~	71DD68D73218C ~	Cermet ~	8115B ~	2~	ISO$WN0604042NB$$04 ~	331 FG ~	WNMG ~	Y ~	6 ~	6246291	6	TT5100 TT8125B TT5080 TT8115B CT3000 PV3010
WNMG 060408 FG	9.52	4.76	0.80	6.52~	FG ~	80~	0.00~	0.70	2.00	0.10	0.25	6~	~	U ~	W ~	71DD68D73218C ~	Cermet ~	8115B ~	2~	ISO$WN0604082NB$$08 ~	332 FG ~	WNMG ~	Y ~	6 ~	6212389	4	TT5100 TT8115B CT3000 PV3010
WNMG 080404 FG	12.70	4.76	0.40	8.70~	FG ~	80~	0.00~	0.50	2.00	0.07	0.20	6~	~	U ~	W ~	71DD68D73218C ~	Cermet ~	8115B ~	2~	ISO$WN0804042NB$$04 ~	431 FG ~	WNMG ~	Y ~	8 ~	6241435	7	TT8020 TT5100 TT8125B TT5080 TT8115B CT3000 PV3010
WNMG 080408 FG	12.70	4.76	0.80	8.70~	FG ~	80~	0.00~	0.70	2.00	0.10	0.25	6~	~	U ~	W ~	71DD68D73218C ~	Cermet ~	8115B ~	2~	ISO$WN0804082NB$$08 ~	432 FG ~	WNMG ~	Y ~	8 ~	6212979	4	TT5100 TT8115B CT3000 PV3010
