TaeguTec Cutting Tools - Metal Working Tools - Turning -

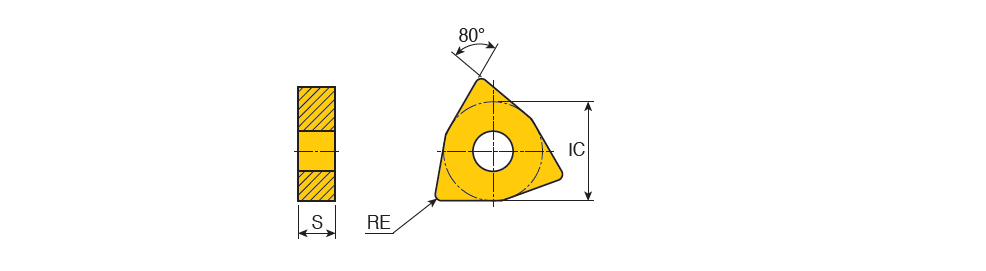

WNMG-MC : Negative 80° Trigon inserts for medium machining of steels and cast irons with excellent chip control

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 060404 MC	9.52	4.76	0.00	6.52~	MC ~	80~	0.00~	0.50	2.50	0.10	0.30	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0604042NB$$04 ~	331 MC ~	WNMG ~	Y ~	~	6241959	1	TT8115B
WNMG 060408 MC	9.52	4.76	0.80	6.52~	MC ~	80~	0.00~	0.70	3.00	0.12	0.35	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0604082NB$$08 ~	332 MC ~	WNMG ~	Y ~	~	6241722	2	TT5100 TT8115B
WNMG 080408 MC	12.70	4.76	0.80	8.70~	MC ~	80~	0.00~	0.70	3.50	0.10	0.35	6~	~	U ~	W ~	71DD68D73218C ~	Cermet ~	8105B ~	2~	ISO$WN0804082NB$$08 ~	432 MC ~	WNMG ~	Y ~	8 ~	6242061	5	TT5100 TT8125B TT8115B TT8105B CT3000
WNMG 080412 MC	12.70	4.76	1.20	8.70~	MC ~	80~	0.00~	0.70	3.50	0.15	0.40	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8105B ~	2~	ISO$WN0804122NB$$12 ~	433 MC ~	WNMG ~	Y ~	8 ~	6241235	3	TT8125B TT8115B TT8105B

Click the Better Suggestions icon to see more choices.
