TaeguTec Cutting Tools - Metal Working Tools - Turning -

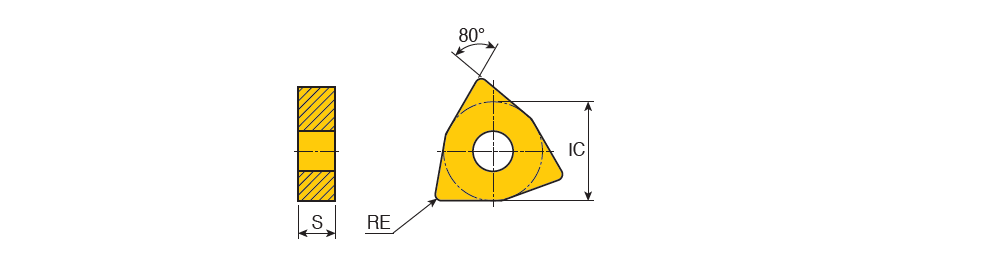

WNMG-ML : Negative 80° Trigon inserts for medium light applications of stainless steel, steel and aluminum with high positive rake geometry to minimize built-up edge & cutting force

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 080408 ML	12.70	4.76	0.80	8.70~	ML ~	80~	0.00~	1.00	3.50	0.12	0.35	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	K10 ~	2~	ISO$WN0804082NB$$08 ~	432 ML ~	WNMG ~	Y ~	8 ~	6176608		7		TT8020 TT8080 TT9225 TT5100 TT5080 TT9215 K10
